21033111402 | Harting

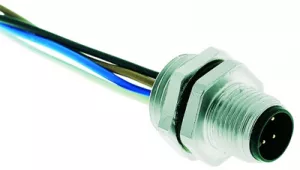

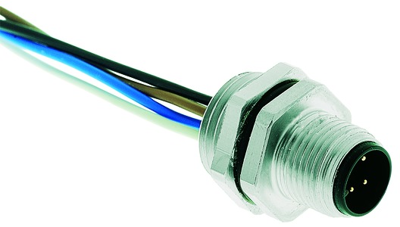

Sensor actuator cable, M12-flange plug, straight to open end, 4 pole, 0.5 m, PA, 4 A, 21033111402
Order No.: 45F863
EAN: 4099891104740
MPN:
21033111402
21 03 311 1402
Series: Circular connectors M12
Unit Price (€ / pc.)
28.1197 € *
Available: 10 pcs.
Leadtime: 20 Weeks **
Total Price:
28.12 € *
Price list
Quantity
Price per unit*
1 pcs.
28.1197 €
5 pcs.
26.4418 €
15 pcs.
25.4184 €
50 pcs.
24.2879 €
150 pcs.
23.3002 €
*incl. VAT plus shipping costs
**Subject to prior sale
Panel feed-through, with strands
Panel feed-through, with strands
The technical features of 21033111402 from Harting at a glance
- Product type designation Panel feed-through M12 A code Pin / M16
- Designation Panel feed-through M12 A code Pin / M16
Technical specifications
| Anschluss (1) | M12-Flanschstecker, gerade | |
| Anschluss (2) | offenes Ende | |
| Kabellänge | 0.5 m | |
| LED-Anzeige | No | |
| Material | PA | |
| max. Spannung | 250 V | |
| Nennstrom | 4 A | |
| Polzahl | 4-polig | |
| Schutzart (IP) | IP67 |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
