09455511000 | Harting

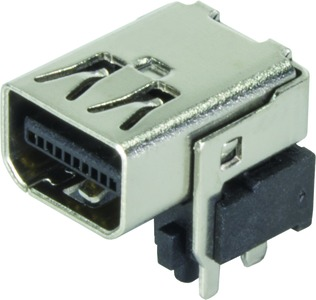

DisplayPort-Socket, 20 pole, SMD, 09455511000
Unit Price (€ / pc.)
6.0214 € *
Available: 0 pcs.
Leadtime: 9 Weeks **
PCB socket, solder connection, rated current: 0.5A, contacts: 20
PCB socket, solder connection, rated current: 0.5A, contacts: 20
The technical features of 09455511000 from Harting at a glance
- Rated voltage: 30 V
- Rated current: 0.5 A
- Designation: Mini Displayport receptacle
- Design of the electrical connection Print connection
- Number of plug contacts: 20
- max. Ambient temperature 80 °C
- max. Operating temperature 80 °C
- min. Operating temperature -40 °C
- min. Ambient temperature -40 °C
- Type of product designation: Mini Displayport receptacle
- Contact design Printed circuit board socket
- Housing material Polyamide
- Angle contact/conductor connection 180° (horizontal)
- Protection class (IP, mounted) IP65/IP67 - IP20 - in plugged condition
Technical specifications
| Version | DisplayPort-Socket | |
| Contact connection | SMD | |
| Assembly | PCB mounting | |
| Pin number | 20 pole |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
