710-00153 | HellermannTyton

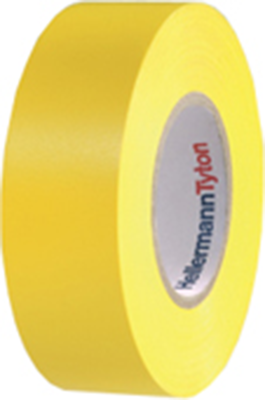

Insulation tape, 19 x 0.15 mm, PVC, yellow, 20 m, 710-00153
Order No.: 14L115
EAN: 4031026479866
MPN:
710-00153
HTAPE-FLEX15-19x20 PVC YE 10
Series: HelaTape Flex 15
Unit Price (€ / pc.)
2.3919 € *
Available: 10 pcs.
Leadtime: 1 Week **
Total Price:
2.39 € *
Price list
Quantity
Price per unit*
1 pcs.
2.3919 €
5 pcs.
2.1539 €
10 pcs.
1.9873 €
*incl. VAT plus shipping costs
**Subject to prior sale
PVC insulation tapes, type HellermannTyton HelaTape Flex 15.
Very flexible, high adhesive strength, good abrasion resistance, resistant against moisture and chemicals, suitable for mechanical and electrical applications up to 1.0 kV, compliant with IEC 60454-3-1-5/5-PVCP/90, self-extinguishing to IEC 60454-2; Material: polyvinylene chloride (PVC). Dielectric strength: 40 kV/mm. Adhesion on steel: 2.0 N/10 mm. Adhesion on carrier material: 1.8 N/10 mm. Elongation at tear: 200 %. Tearing strength: 24 N/10 mm. Operating temperature: +90 °C. Thickness: 0.15 mm.
Technical attributes (type, width, color, roll length): 710-00153, 19 mm, yellow, 20 m roll
Technical specifications
| Version | insulation tape | |
| Width | 19 mm | |
| Thickness | 0.15 mm | |
| Colour | yellow | |
| Length | 20 m | |
| Material | PVC | |
| max. operating temperature | 90 °C |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 39191012 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
