401-34180 | HellermannTyton

Shrink-molded connector end housings, 3:1, straight, S1 (43.5/43.5 mm), S2 (34/12 mm), 401-34180

Order No.: 42P5849
EAN: 5022660635007
MPN:
401-34180
134-1-G-PO-X-BK
HellermannTyton
401-34180 HellermannTyton Bottle Shapes
Image may differ
Unit Price (€ / pc.)
47.5762 € *
Available: 0 pcs.
Leadtime: 13 Weeks **
Total Price:
47.58 € *
*incl. VAT plus shipping costs
**Subject to prior sale
100 pcs.
47.5762 €

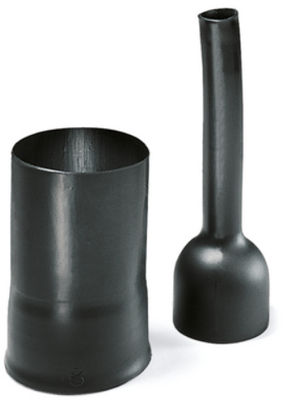

Shrink moulded part, 401-34180, HellermannTyton

The 401-34180 is a heat shrinkable moulded shape for use in electrical and electronic cable harness applications.

Technical specifications
Version straight
Colour black
Inner diameter after shrinkage 2 12 mm
Inner diameter side 1 (after shrinkage) 43.5 mm
Inner diameter side 1 (before shrinkage) 43.5 mm
Inner diameter before shrinkage 2 34 mm
contains glue inside No
Length 114 mm
max. operating temperature 150 °C
min. operating temperature -75 °C
Shrinking rate 3:1
Wall thickness 2 mm
Logistics
Country of origin GB
Customs tariff number 39174000
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
