422-00001 | HellermannTyton
Low profile heat shrink sleeve, 3:1, straight, S1 (14.2/11.1 mm), S2 (6.9/4.8 mm), 422-00001
Order No.: 42P5904
EAN: 5022660452932
MPN:
422-00001
313C722-9-PO-X-BK
Series: Helashrink Serie 313C
Unit Price (€ / pc.)
16.3744 € *
Available: 0 pcs.
Leadtime: 13 Weeks **

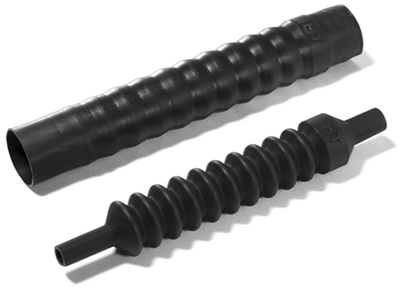

Low profile moulded part, 422-00001, HellermannTyton
The 422-00001 low profile moulded part with its convoluted design grants flexibility for different cable outlet angles. It is suitable for circular grooved adapters to provide strain relief.
This product can be used in military and general performance harnessing.
Features
- Excellent environmental sealing with adhesive
Technical specifications
| Ausführung | gerade | |
| Farbe | schwarz | |
| Innendurchmesser nach Schrumpfung 2 | 4.8 mm | |
| Innendurchmesser Seite 1 (nach Schrumpfung) | 11.1 mm | |
| Innendurchmesser Seite 1 (vor Schrumpfung) | 14.2 mm | |
| Innendurchmesser vor Schrumpfung 2 | 6.9 mm | |
| Innenkleber vorhanden | No | |
| Länge | 120.6 mm | |
| max. Temperatur | 120 °C | |
| min. Temperatur | -55 °C | |
| Schrumpfrate | 3:1 | |
| Wanddicke | 0.3 mm |
Download
Logistics
| Ursprungsland | GB |
| Zolltarifnummer | 39174000 |
| Originalverpackung | Beutel mit 5 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
