422-20200 | HellermannTyton
Shrink fit reduction, 3:1, straight, S1 (30.9/24.3 mm), S2 (18.5/8.9 mm), 422-20200
Order No.: 42P5868
EAN: 5022660454158
MPN:
422-20200
313F343-9-PO-X-BK
Series: Helashrink Serie 313F
Unit Price (€ / pc.)
21.5271 € *
Available: 0 pcs.
Leadtime: 13 Weeks **
Shrink fit reduction, 422-20200, HellermannTyton

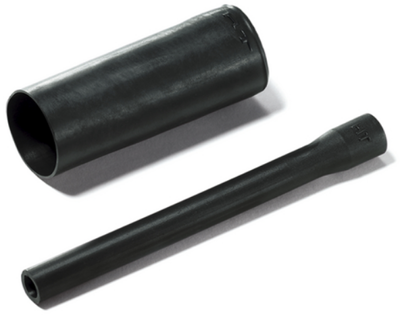

The 422-20200 is a lightweight strain relief for small cable diameters requiring high shrink ratio.
Technical specifications
| Version | straight | |
| Colour | black | |
| Inner diameter after shrinkage 2 | 8.9 mm | |
| Inner diameter side 1 (after shrinkage) | 24.3 mm | |
| Inner diameter side 1 (before shrinkage) | 30.9 mm | |
| Inner diameter before shrinkage 2 | 18.5 mm | |
| contains glue inside | No | |
| Length | 138.6 mm | |
| max. operating temperature | 120 °C | |
| min. operating temperature | -55 °C | |
| Shrinking rate | 3:1 | |
| Wall thickness | 1.7 mm |
Download
Logistics
| Country of origin | GB |
| Customs tariff number | 39174000 |
| Original Packaging | Bag with 5 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
