170-10500 | HellermannTyton
Plastic braided sleeve, inner Ø 5 mm, range 3-9 mm, black, halogen free, -50 to 150 °C, 170-10500
Unit Price (€ / mtr.)
1.6898 € *
Available: 1,069 mtr.
Leadtime: 1 Week **
Total Price:
1.69 € *
Price list
Quantity
Price per unit*
1 mtr.
1.6898 €
25 mtr.
1.4399 €
200 mtr.
1.2257 €
400 mtr.
1.1662 €
800 mtr.
1.1186 €
*incl. VAT plus shipping costs
**Subject to prior sale

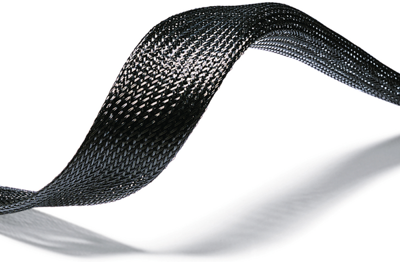

Plastic braid sleeving, type HellermannTyton HEGP.
Woven based on the shear principle, that is, the tubing diameter extends when the layers are pushed together and is reduced again by stretching the tubing; Material: Polyester (PET), halogen-free. Color: black, combustibility to UL 94 VDC2, melting point: +250 °C, coverage: approx. 81%. Operating temperatures: –50 to +150 °C, briefly to +220 °C.
Technical attributes (type, range of application (AR)): HEGP05, AR 3.0 to 9.0 mm
Technical specifications
| Version | plastic braided sleeve | |
| Application range | 3-9 mm | |
| Colour | black | |
| Halogen free | Yes | |
| Inner diameter | 5 mm | |
| Material | polyester | |
| max. operating temperature | 150 °C | |
| min. operating temperature | -50 °C | |
| Optical Coverage | 81 % |
Download
Logistics
| Country of origin | FR |
| Customs tariff number | 58081000 |
| Original Packaging | Reel with 200 meters |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
