151-10906 | HellermannTyton

Mounting base, PA, natural, self-adhesive, (L x W x H) 40 x 40 x 5.5 mm, 151-10906

Order No.: 12H5038
EAN: 4031026413792
MPN:
151-10906
QM40A-PA66-NA
Series: QMA-Mount
HellermannTyton
151-10906 HellermannTyton Cable Holders Image 1
151-10906 HellermannTyton Cable Holders Image 2
Image may differ
Unit Price (€ / pc.)
1.2852 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
1.29 € *
Price list
Quantity
Price per unit*
1 pcs.
1.2852 €
10 pcs.
1.1781 €
100 pcs.
1.0829 €
1000 pcs.
0.9996 €
5000 pcs.
0.9401 €
*incl. VAT plus shipping costs
**Subject to prior sale

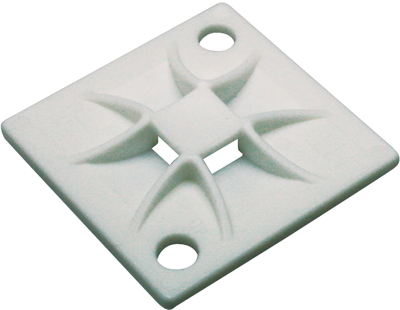

Mounting socket, type HellermannTyton QM

Self-adhesive and screw mounting, halogen-free. cable ties of the Q series can be looped in from all four sides and always remain at their position during installation ( in a vertical position).

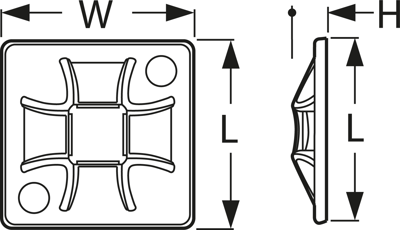

Dimensions: Length 40 mm, Width 40 mm, 5.5 mm

Max. tie width: 8.4 mm

Material: polyamide 6.6

Operating temperatures: - 40 to +85 °C. Fire protection properties to UL 94 V-2 (without adhesive)

Carrier material: PE foam

Operating temperatures: - 40 to +60 °C

Color: plain

Technical specifications
Version mounting base
Width 40 mm
Colour natural
Height 5.5 mm
Length 40 mm
Material PA
Self-adhesive Yes
Logistics
Country of origin DE
Customs tariff number 39269097
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
