151-75209 | HellermannTyton
Mounting base, max. bundle Ø 11 mm, PA, natural, (L x W x H) 15 x 5.25 x 27.7 mm, 151-75209
Order No.: 12H4856
EAN: 5022660327698
MPN:
151-75209
WPC20-N66-NA-D1
Unit Price (€ / pc.)
0.4522 € *
Available: 295 pcs.
Leadtime: 1 Week **
Total Price:
0.45 € *
Price list
Quantity
Price per unit*
1 pcs.
0.4522 €
50 pcs.
0.4046 €
100 pcs.
0.3451 €
500 pcs.
0.3213 €
1000 pcs.
0.2880 €
*incl. VAT plus shipping costs
**Subject to prior sale

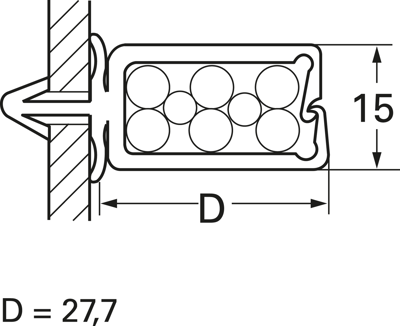

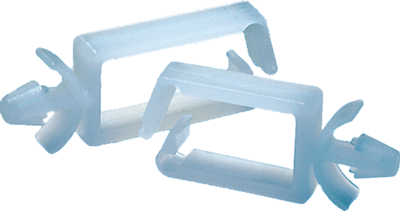

Cable clamp, arrowhead push mount, series WPC, type HellermannTyton 151-75209
Halogen-free, with clip lock for strapping and fastening single cables or cable harnesses. Efficient installation by means of pressure lock-in fastener in bore hole diameters of 4.7 mm. Suitable for wall thickness from 0.8 to 4.0 mm.
Material: polyamide 6.6 to UL 94 V-2
Operating temperatures: - 40 to +85 °C (briefly to +105 °C)
Width: 15 mm
Saliency height: 27.7 mm
Technical specifications
| Version | mounting base | |
| Width | 5.25 mm | |
| Colour | natural | |
| Height | 27.7 mm | |
| Length | 15 mm | |
| Material | PA | |
| max. Bundle diameter | 11 mm | |
| Self-adhesive | No |
Download
Logistics
| Country of origin | GB |
| Customs tariff number | 39269097 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
