435-00081 | HellermannTyton
Cast resin connection sleeve, 6-24 mm, 3x1.5-5x6 mm², 435-00081
Unit Price (€ / pc.)
26.0372 € *
Available: 1 pcs.
Leadtime: 1 Week **

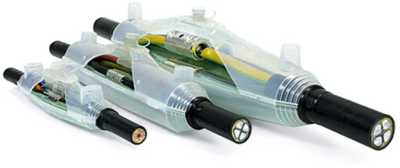

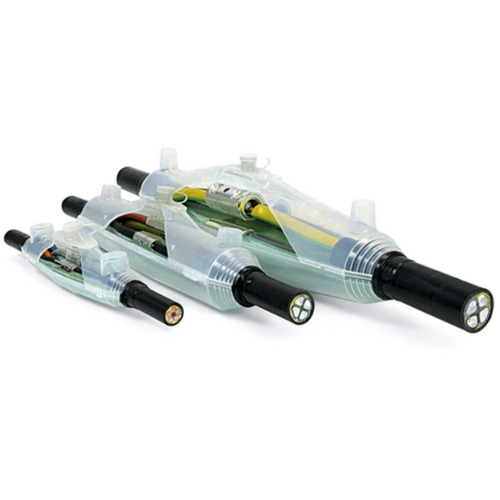

Cast resin joint, 435-00081, HellermannTyton
The 435-00081 is a cast resin joint made for installations in low-voltage electrical networks. It is suitable for jointing on polymeric cables and wires made of PVC, XLPE, PE, EPR and utility cables.
Features
- Colour changes from blue to green whilst mixing
- Standard cable diameters indicated on the shells

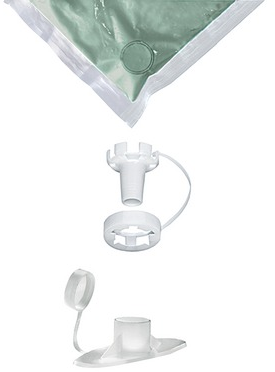

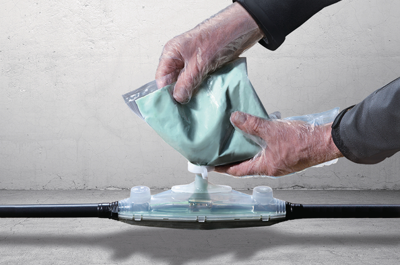

- Safe-Filling system (SF)
- Immediately ready for use
- Longitudinally and transversely watertight
- Joint can be submerged directly after casting
Technical specifications
| Version | cast resin connection sleeve | |
| Design | straight | |
| Colour | green | |
| Cable diameter | 6 to 24 mm | |
| Cable cross-section | 1.5-6.0 mm² | |
| Rated voltage IEC | 1000 V |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 39095090 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
