435-00088 | HellermannTyton
Cast resin connection sleeve, straight, 1.5-10 mm², cable Ø 6 to 24 mm, 435-00088
Unit Price (€ / pc.)
29.0955 € *
Available: 0 pcs.
Leadtime: 1 Week **

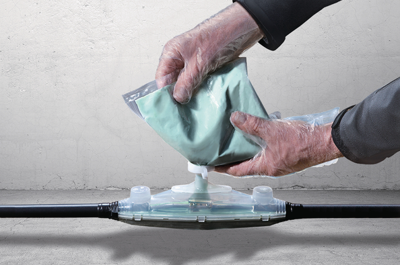

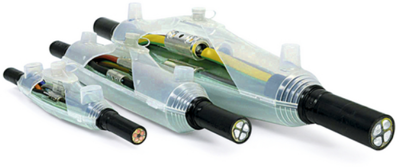

Cast resin joint, 435-00088, HellermannTyton
The 435-00088 is a cast resin joint made for installations in low-voltage electrical networks. It is suitable for jointing on polymeric cables and wires made of PVC, XLPE, PE, EPR and utility cables.
Features
- Colour changes from blue to green whilst mixing
- Standard cable diameters indicated on the shells

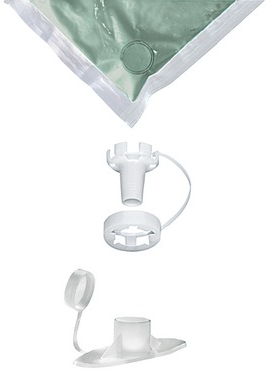

- Safe-Filling system (SF)
- Immediately ready for use
- Longitudinally and transversely watertight
- Joint can be submerged directly after casting
Technical specifications
| Ausführung | Gießharz-Verbindungsmuffe | |
| Bauform | gerade | |
| Farbe | grün | |
| Kabeldurchmesser | 6 bis 24 mm | |
| Leiterquerschnitt | 1,5-10 mm² | |
| Nennspannung IEC | 1000 V |
Download
Logistics
| Ursprungsland | PL |
| Zolltarifnummer | 39095090 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
