151-01482 | HellermannTyton
Mounting clamp, (L x W) 207.01 x 34.9 mm, mounting Ø 113.3 mm, clamping range 19.4-36 mm, PA, black, 151-01482
Order No.: 42P5584
EAN: 4031026543147
MPN:
151-01482
RCC180LM12-PA66HIRHSUV/ST/ZN-BK
Series: Ratchet P-Clamp
Unit Price (€ / pc.)
3.9984 € *
Available: 126 pcs.
Leadtime: 1 Week **
Total Price:
4.00 € *
Price list
Quantity
Price per unit*
1 pcs.
3.9984 €
10 pcs.
3.6652 €
50 pcs.
3.4510 €
100 pcs.
3.2368 €
500 pcs.
3.0226 €
*incl. VAT plus shipping costs
**Subject to prior sale

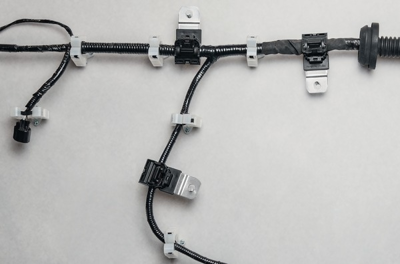

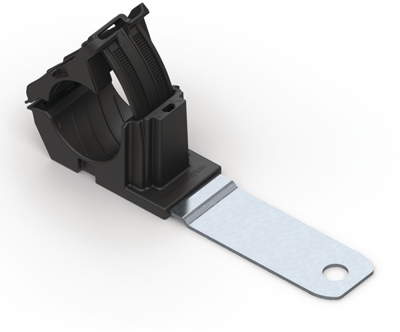

Mounting clamp, 151-01482, HellermannTyton
Features
- One-piece ratchet closure design allows for easy installation during pre- or final assembly
- Multiple configurations handle a wide range of diameters and applications, reducing part inventory
- Clamp interior is designed to guide and center bundle to reduce pinching
- Easy release feature allows for quick adjustments and maintenance
- Impact modified, heat and UV stabilized PA66 provides long-term durability, in- and outdoors
Technical specifications
| Width | 34.9 mm | |
| Colour | black | |
| clamping force range | 19.4-36 mm | |
| Length | 207.01 mm | |
| Material | PA | |
| max. operating temperature | 105 °C | |
| min. operating temperature | -40 °C | |
| Mounting hole size | 113.3 mm | |
| Accessory Type | mounting clamp |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 39269097 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
