111-01523 | HellermannTyton
Cable tie, stainless steel, (L x W) 1092 x 16 mm, bundle-Ø 25 to 160 mm, black, -80 to 538 °C, 111-01523
Order No.: 42P5682
EAN: 5022660341762
MPN:
111-01523
MBT43UHDFC-SS316/SP-BK
Series: MBTXHDFC-/MBTUHDFC
Unit Price (€ / pc.)
17.8976 € *
Available: 0 pcs.
Leadtime: 9 Weeks **

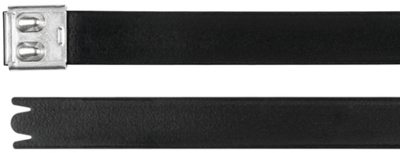

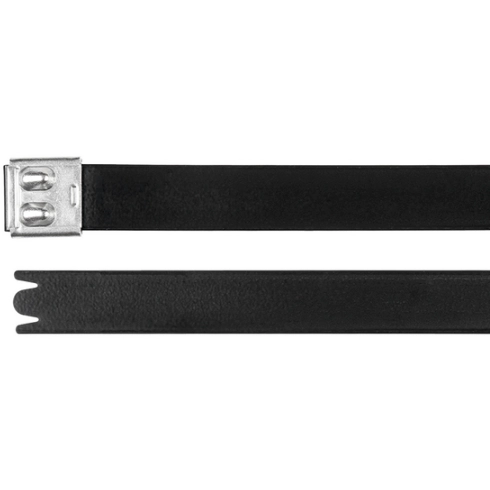

Double wrap cable tie, 111-01523, HellermannTyton
This stainless steel cable tie can be used in the most arduous of conditions or where the additional security, strength and fire resistance of a metal fixing is required. It is used in all industries from mass transit, ship building, oil rigs, mining and chemical industry, theatres and exhibition halls.
In the event of a fire, the cable will remain securely held in place and will not fall to block emergency exits.
Features
- Non-releasable locking feature
- Corrosion resistant
- Weather resistant
- Outstanding chemical resistance
- High temperature resistant
Technical specifications
| Width | 16 mm | |
| Thickness | 0.38 mm | |
| Colour | black | |
| Halogen free | Yes | |
| Length | 1092 mm | |
| Material | stainless steel | |
| max. Bundle diameter | 160 mm | |
| max. operating temperature | 538 °C | |
| min. Bundle diameter | 25 mm | |
| min. operating temperature | -80 °C | |
| detachable closure | No | |
| Min holding force | 5000 N |
Download
Logistics
| Country of origin | GB |
| Customs tariff number | 73269098 |
| Original Packaging | Bag with 25 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
