118-00081 | HellermannTyton
Cable tie outside serrated, PA, (L x W) 245 x 4.6 mm, bundle-Ø 1.6 to 66 mm, white, -40 to 85 °C, 118-00081
Unit Price (€ / pc.)
1.3209 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
1.32 € *
Price list
Quantity
Price per unit*
10 pcs.
1.3209 €
50 pcs.
1.1662 €
100 pcs.
1.0591 €
500 pcs.
0.9877 €
1000 pcs.
0.8806 €
*incl. VAT plus shipping costs
**Subject to prior sale

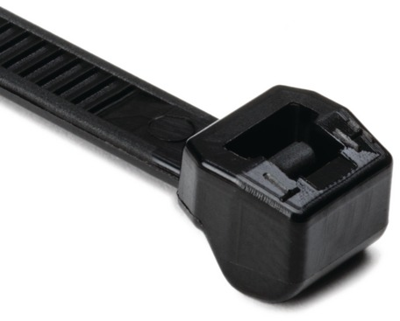

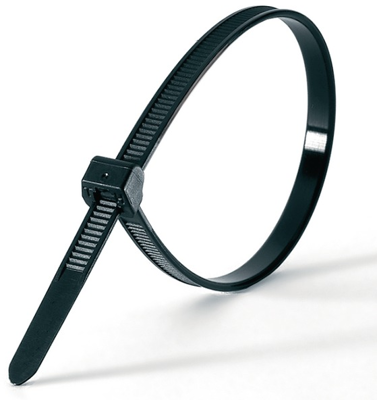

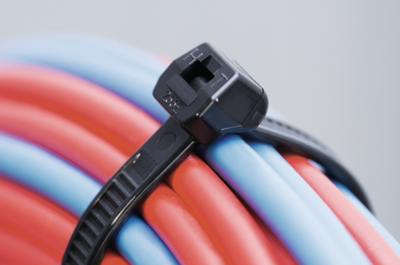

Cable tie outside serrated, 118-00081, HellermannTyton
This cable tie is used in many areas where thin-walled or soft insulation wires and cable are being installed, for instance automotive and aircraft industry.
Features
- Outside serrated cable tie with smooth surface to the bundle
- Takes up less space due to curved head design
- Easy insertion combined with high tensile strength
- Easy application either manually or with an application tool
Technical specifications
| Width | 4.6 mm | |
| Chemical resistant | No | |
| Thickness | 1.3 mm | |
| Colour | white | |
| Halogen free | Yes | |
| Length | 245 mm | |
| Material | PA | |
| max. Bundle diameter | 66 mm | |
| max. operating temperature | 85 °C | |
| min. Bundle diameter | 1.6 mm | |
| min. operating temperature | -40 °C | |
| UV-resistant | No | |
| detachable closure | No | |
| Min holding force | 225 N |
Download
Logistics
| Country of origin | GB |
| Customs tariff number | 39269097 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
