118-04701 | HellermannTyton
Cable tie outside serrated, PA, (L x W) 100 x 2.5 mm, bundle-Ø 1.6 to 20 mm, black, -40 to 105 °C, 118-04701
Unit Price (€ / pc.)
0.0559 € *
Available: 1,300 pcs.
Leadtime: 1 Week **
Total Price:
0.56 € *
Price list
Quantity
Price per unit*
10 pcs.
0.0559 €
50 pcs.
0.0488 €
100 pcs.
0.0440 €
500 pcs.
0.0405 €
1000 pcs.
0.0369 €
*incl. VAT plus shipping costs
**Subject to prior sale

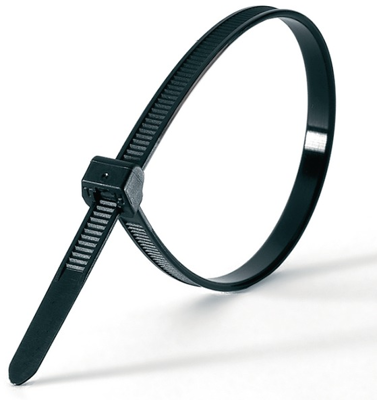

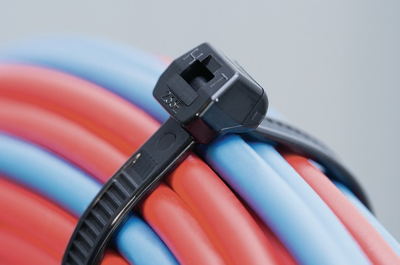

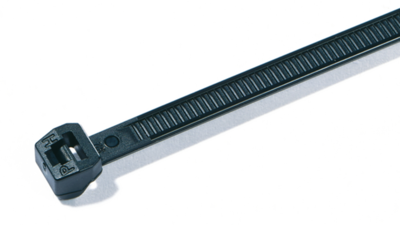

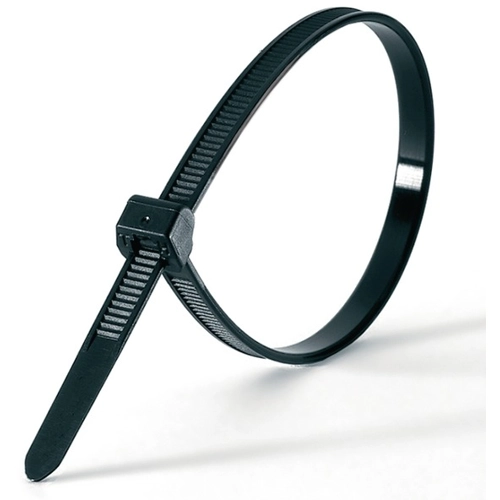

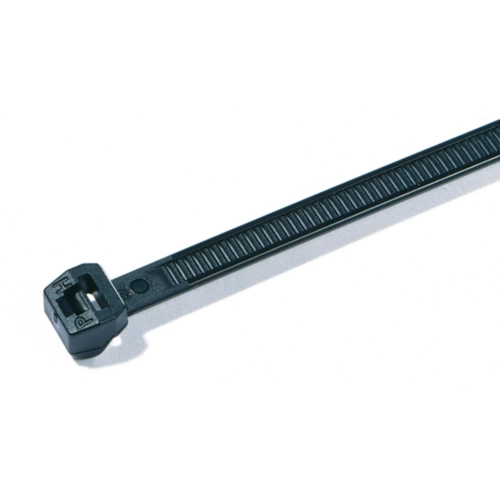

Cable tie for thin-walled bundles, 118-04701, HellermannTyton
The 118-04701 is a cable tie used in many areas where thin-walled or soft insulation wires and cable are being installed, for instance automotive and aircraft industry. This tie is made from material PA66V0 that is suitable for applications where safety regulations require reduction of smoke and dangerous gases.
Features
- Outside serrated cable tie with smooth surface to the bundle
- Tie follows the contours of the cable bundle perfectly

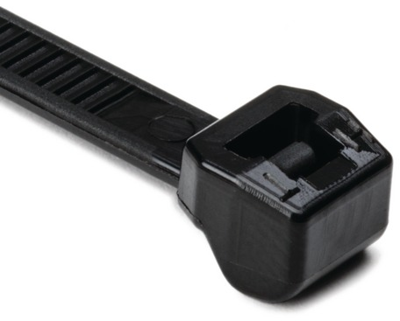

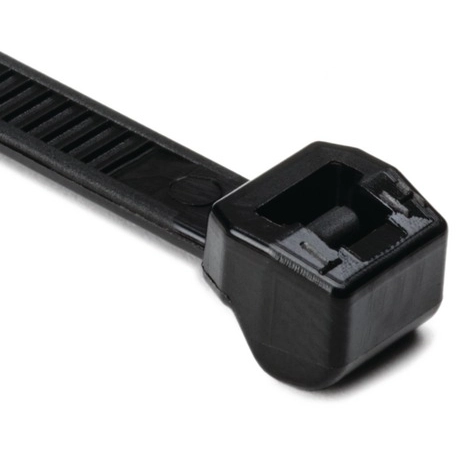

- Takes up less space due to curved head design
- Easy insertion combined with high tensile strength
Technical specifications
| Breite | 2.5 mm | |
| Chemikalienbeständig | No | |
| Dicke | 1 mm | |
| Farbe | schwarz | |
| Halogenfrei | Yes | |
| Länge | 100 mm | |
| Material | PA | |
| max. Bündeldurchmesser | 20 mm | |
| max. Temperatur | 105 °C | |
| min. Bündeldurchmesser | 1.6 mm | |
| min. Temperatur | -40 °C | |
| UV-beständig | No | |
| Verschluss lösbar | No | |
| Min Haltekraft | 80 N |
Download
Logistics
| Ursprungsland | GB |
| Zolltarifnummer | 39269097 |
| Originalverpackung | Beutel mit 500 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
