118-04800 | HellermannTyton
Cable tie outside serrated, PA, (L x W) 145 x 3.4 mm, bundle-Ø 1.6 to 35 mm, black, -40 to 105 °C, 118-04800
Unit Price (€ / pc.)
0.1083 € *
Available: 7,800 pcs.
Leadtime: 1 Week **
Total Price:
1.08 € *
Price list
Quantity
Price per unit*
10 pcs.
0.1083 €
50 pcs.
0.0952 €
100 pcs.
0.0869 €
500 pcs.
0.0809 €
1000 pcs.
0.0714 €
*incl. VAT plus shipping costs
**Subject to prior sale

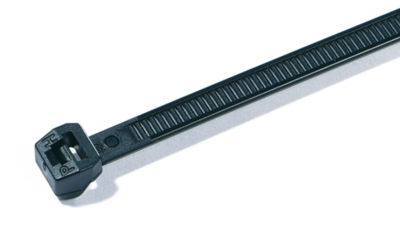

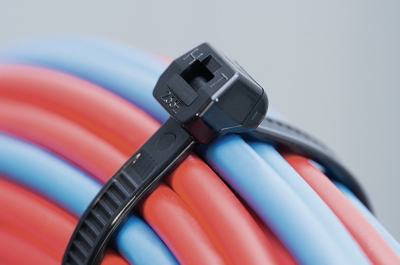

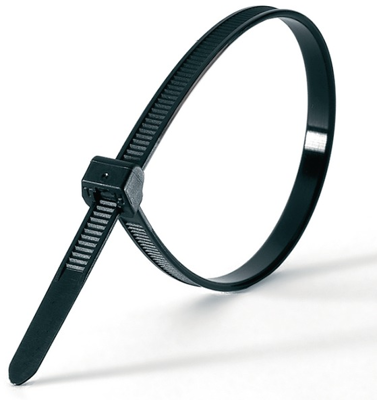

Cable tie for thin-walled bundles, 118-04800, HellermannTyton
The 118-04800 is a cable tie used in many areas where thin-walled or soft insulation wires and cable are being installed, for instance automotive and aircraft industry. This tie is made from material PA66V0 that is suitable for applications where safety regulations require reduction of smoke and dangerous gases.
Features
- Outside serrated cable tie with smooth surface to the bundle
- Tie follows the contours of the cable bundle perfectly

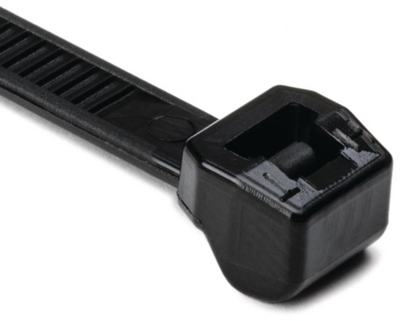

- Takes up less space due to curved head design
- Easy insertion combined with high tensile strength
Technical specifications
| Width | 3.4 mm | |
| Chemical resistant | No | |
| Thickness | 1.2 mm | |
| Colour | black | |
| Halogen free | Yes | |
| Length | 145 mm | |
| Material | PA | |
| max. Bundle diameter | 35 mm | |
| max. operating temperature | 105 °C | |
| min. Bundle diameter | 1.6 mm | |
| min. operating temperature | -40 °C | |
| UV-resistant | No | |
| detachable closure | No | |
| Min holding force | 135 N |
Download
Logistics
| Country of origin | GB |
| Customs tariff number | 39269097 |
| Original Packaging | Bag with 100 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
