118-05050 | HellermannTyton
Cable tie outside serrated, PA, (L x W) 200 x 4.6 mm, bundle-Ø 1.6 to 50 mm, black, -40 to 105 °C, 118-05050
Unit Price (€ / pc.)
0.1845 € *
Available: 1,270 pcs.
Leadtime: 1 Week **
Total Price:
1.84 € *
Price list
Quantity
Price per unit*
10 pcs.
0.1845 €
50 pcs.
0.1607 €
100 pcs.
0.1464 €
500 pcs.
0.1357 €
1000 pcs.
0.1214 €
*incl. VAT plus shipping costs
**Subject to prior sale

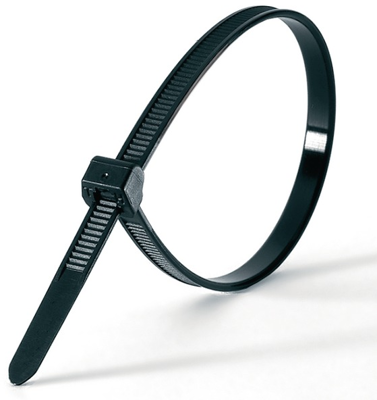

Cable ties with barbs on the outside, type HellermannTyton T50.

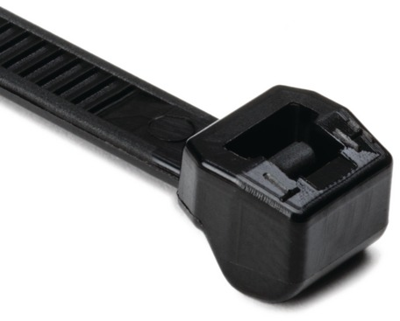

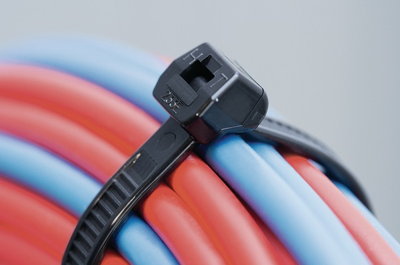

The smooth side of the tape rests on the harness material to avoid pressure marks and indentations in the cable caused by the barbs. The head stands off far less and can be threaded when the tie is installed
Technical specifications
| Width | 4.6 mm | |
| Chemical resistant | No | |
| Thickness | 1.3 mm | |
| Colour | black | |
| Halogen free | Yes | |
| Length | 200 mm | |
| Material | PA | |
| max. Bundle diameter | 50 mm | |
| max. operating temperature | 105 °C | |
| min. Bundle diameter | 1.6 mm | |
| min. operating temperature | -40 °C | |
| UV-resistant | No | |
| detachable closure | No | |
| Min holding force | 225 N |
Download
Logistics
| Country of origin | GB |
| Customs tariff number | 39269097 |
| Original Packaging | Bag with 100 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
