118-05850 | HellermannTyton
Cable tie, PA, (L x W) 150 x 4.6 mm, bundle-Ø 1.6 to 35 mm, black, -40 to 105 °C, 118-05850
Unit Price (€ / pc.)
0.1559 € *
Available: 64 pcs.
Leadtime: 1 Week **
Total Price:
1.56 € *
Price list
Quantity
Price per unit*
10 pcs.
0.1559 €
50 pcs.
0.1380 €
100 pcs.
0.1249 €
500 pcs.
0.1154 €
1000 pcs.
0.1035 €
*incl. VAT plus shipping costs
**Subject to prior sale

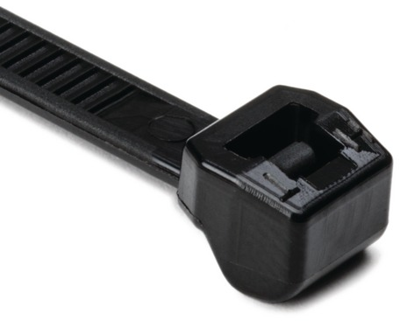

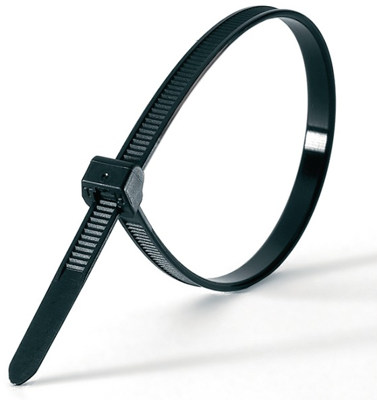

Cable ties with barbs on the outside, type HellermannTyton T50.

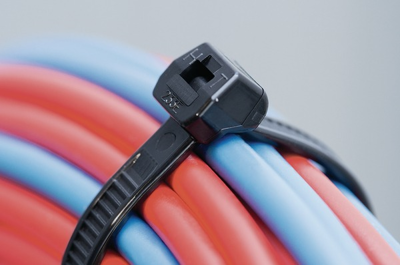

The smooth side of the tape rests on the harness material to avoid pressure marks and indentations in the cable caused by the barbs. The head stands off far less and can be threaded when the tie is installed
Technical specifications
| Version | außenverzahnt | |
| Length | 150 mm | |
| Width | 4.6 mm | |
| Thickness | 1.3 mm | |
| min. Bundle diameter | 1.6 mm | |
| max. Bundle diameter | 35 mm | |
| Min holding force | 225 N | |
| Material | PA | |
| Colour | schwarz | |
| detachable closure | No | |
| Chemical resistant | No | |
| UV-resistant | No | |
| Halogen free | Yes | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 105 °C |
Download
Logistics
| Country of origin | GB |
| Customs tariff number | 39269097 |
| Original Packaging | Beutel mit 100 Stück |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
