156-00379 | HellermannTyton
Cable tie, PA, (L x W) 200 x 1.3 mm, bundle-Ø 4 to 45 mm, black, -40 to 105 °C, 156-00379
Order No.: 42P5689
EAN: 4031026289632
MPN:
156-00379
T50XROSSFT6.5-E-MDL-PA66HS-BK
Unit Price (€ / pc.)
0.4522 € *
Available: 0 pcs.
Leadtime: 1 Week **

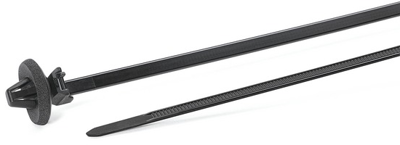

Fixing tie, 156-00379, HellermannTyton
This fixing tie is mainly used in the automotive industry. This fastening solution is used to secure cable harnesses e.g. in car doors. The seal protects the interior and surrounding cables among other things from splash water.
Features
- One-piece fixing ties with cellular rubber disc
- Cellular rubber disc minimises ingress of dust, dirt and splash water
- Made from PA66 heat-stabilised material
Technical specifications
| Version | mit Spreizfuß | |
| Width | 1.3 mm | |
| Thickness | 1.3 mm | |
| Colour | schwarz | |
| Halogen free | Yes | |
| Length | 200 mm | |
| Material | PA | |
| max. Bundle diameter | 45 mm | |
| max. operating temperature | 105 °C | |
| min. Bundle diameter | 4 mm | |
| min. operating temperature | -40 °C | |
| UV-resistant | No | |
| detachable closure | No | |
| Min holding force | 200 N |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 39269097 |
| Original Packaging | Beutel mit 500 Stück |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
