157-00085 | HellermannTyton
Cable tie with lamellar foot and plate, PA, (L x W) 160 x 4.6 mm, bundle-Ø 1 to 35 mm, black, -40 to 105 °C, 157-00085
Order No.: 12H4894
EAN: 4099891201753
MPN:
157-00085
T50SOSFT6-E2-PA66HS-BK
Unit Price (€ / pc.)
0.2499 € *
Available: 630 pcs.
Leadtime: 1 Week **
Total Price:
0.25 € *
Price list
Quantity
Price per unit*
1 pcs.
0.2499 €
10 pcs.
0.2178 €
100 pcs.
0.2011 €
500 pcs.
0.1904 €
1500 pcs.
0.1737 €
*incl. VAT plus shipping costs
**Subject to prior sale

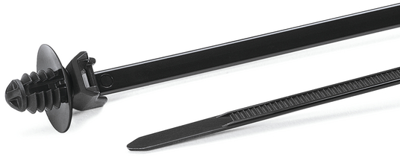

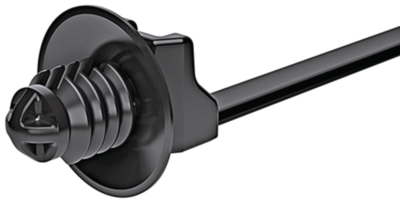

1-piece fixing tie, 157-00085, HellermannTyton
Primarily designed for fixing cable harnesses in the automotive industry their simplicity, and ease of use has seen this parts used in everything from aircraft, to switch-gear, to washing machines.
Features
- Cable tie head always situated in defined position
- Easy to assemble without the need for a tool
- Disc adjusts tie for pressure from various directions and minimises access of dust and dirt
- Suitable for use within threaded holes
Technical specifications
| Width | 4.6 mm | |
| Chemical resistant | No | |
| Colour | black | |
| Halogen free | Yes | |
| Length | 160 mm | |
| Material | PA | |
| max. Bundle diameter | 35 mm | |
| max. operating temperature | 105 °C | |
| min. Bundle diameter | 1 mm | |
| min. operating temperature | -40 °C | |
| UV-resistant | No | |
| detachable closure | No | |
| Min holding force | 180 N |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 39269097 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
