181-47260 | HellermannTyton

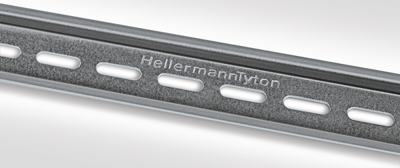

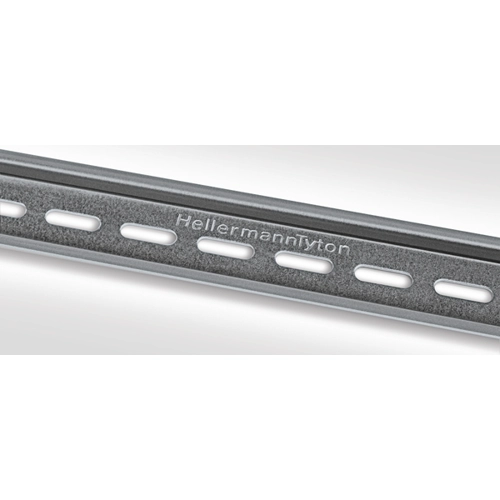

DIN rail, perforated, 35 x 7.5 mm, W 2000 mm, steel, white chromated, 181-47260
Unit Price (€ / pc.)
20.8726 € *
Available: 4 pcs.
Leadtime: 1 Week **
Total Price:
20.87 € *
Price list
Quantity
Price per unit*
1 pcs.
20.8726 €
5 pcs.
19.2185 €
10 pcs.
16.7076 €
25 pcs.
15.4581 €
50 pcs.
14.2086 €
*incl. VAT plus shipping costs
**Subject to prior sale
DIN mounting rail, 181-47260, HellermannTyton

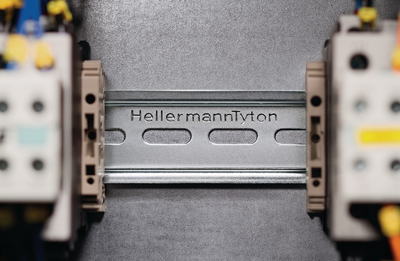

DELTA mounting rails are used for mounting switch cabinets. Another main field of application is the mounting of cables and wires laid in the switch cabinet, e.g. control cables, power supply lines, etc. The mounting rails are used to fix switchgear, control units, relays etc. in the switch cabinet.
Features
- High dimensional stability according to EN 60715
- DIN ISO 9227 NSS/AASS/CASS
- Easy mounting
- Available with two different coatings: Galvanic zinc coating and passivation (white chromated) or strip galvanised
- White chromated DELTA mounting rails offer excellent corrosion protection
- Available with and without base perforation

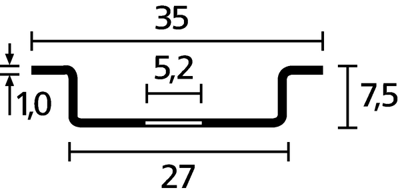

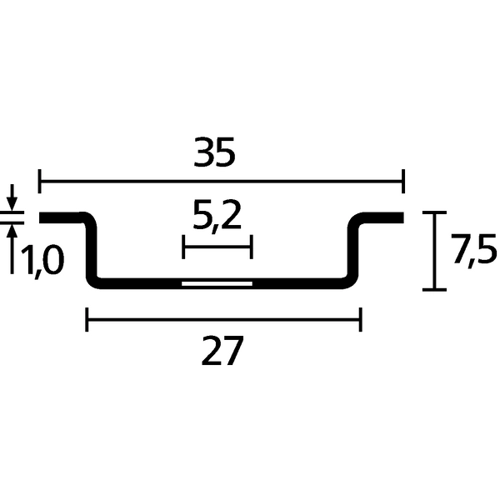

Technical specifications
| Version | DIN rail, perforated | |
| Width | 2000 mm | |
| Height | 35 mm | |
| Material | steel, white chromated | |
| Depth | 7.5 mm |
Download
Logistics
| Country of origin | IT |
| Customs tariff number | 72166190 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
