416-00002 | HellermannTyton

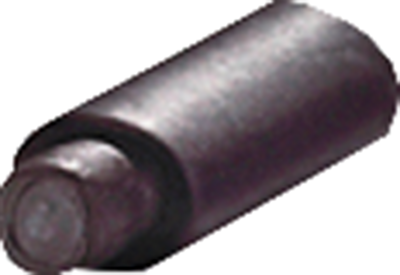

Heatshrink cap, PEC-9/3, d 9.0/3.0 mm, WT 1.4 mm, 35 mm
Unit Price (€ / pc.)
0.8449 € *
Available: 40 pcs.
Leadtime: 1 Week **
Total Price:
8.45 € *
Price list
Quantity
Price per unit*
10 pcs.
0.8449 €
50 pcs.
0.7497 €
250 pcs.
0.6426 €
*incl. VAT plus shipping costs
**Subject to prior sale
Heatshrink caps, type HellermannTyton PEC.
Made of cross-linked polyolefin (PEX) with adhesive lining; Shrinkage rate: 3 : 1. Shrinking temperature: min. +120 °C. Adhesive melting point: +85 °C. Dielectric strength: 15 kV/mm to IEC 684 P2. Operating temperatures: –45 to +125 °C. Fire protection properties: self-extinguishing after 30 s to SAE-AMS-DTL-23053/4.
Technical attributes (type, dimension d pre-/post-shrinking, wall thickness (WT), length): PEC-9/3, d 9.0/3.0 mm, WT 1.4 mm, L 35 mm
Technical specifications
| Colour | black | |
| Inner diameter after shrinkage | 3 mm | |
| Inner diameter before shrinkage | 9 mm | |
| contains glue inside | No | |
| Material | PE | |
| max. operating temperature | 125 °C | |
| min. operating temperature | -45 °C | |
| Shrinking rate | 3:1 | |
| Shrinking temperature | 120 °C | |
| Wall thickness | 1.4 mm |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 39173200 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
