300-73010 | HellermannTyton

Heatshrink tubing, 2:1, (1.2/0.6 mm), PE, crosslinked, black, 300-73010

Order No.: 91F197
EAN: 4031026282701
MPN:
300-73010
TCN20-1,2/0,6
Series: TCN20
HellermannTyton

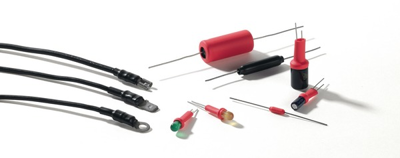

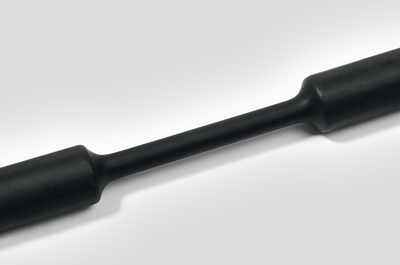

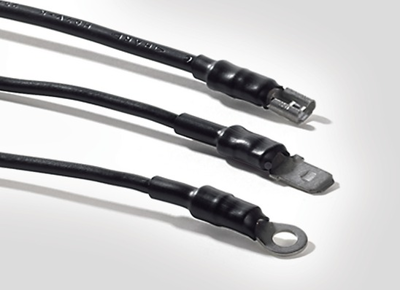

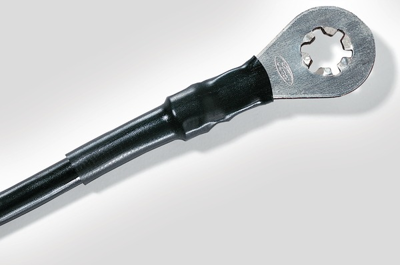

300-73010 HellermannTyton Heat Shrink Tubing Image 1
300-73010 HellermannTyton Heat Shrink Tubing Image 2
300-73010 HellermannTyton Heat Shrink Tubing Image 3
300-73010 HellermannTyton Heat Shrink Tubing Image 4
300-73010 HellermannTyton Heat Shrink Tubing Image 5
Image may differ
Print
Key Specification:
Shrinking rate 2:1
Inner diameter before shrinkage 1.2 mm
Inner diameter after shrinkage 0.6 mm
Length 300 m
min. operating temperature -55 °C
Show 10 variants
Download Datasheet Technical specifications
Unit Price (€ / mtr.)
2.4990 € *
Available: 185 mtr.
Leadtime: 1 Week **
Total Price:
2.50 € *
Price list
Quantity
Price per unit*
1 mtr.
2.4990 €
25 mtr.
2.1301 €
100 mtr.
1.9635 €
250 mtr.
1.8683 €
1000 mtr.
1.7017 €
*incl. VAT plus shipping costs
**Subject to prior sale
Description
Technical specifications
Download
Logistics
Compliance
Variations

Heatshrink tubing, type HellermannTyton TCN20.

Self-extinguishing, good chemical and mechanical resistance

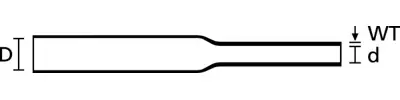

Technical specifications
Colour black
Inner diameter after shrinkage 0.6 mm
Inner diameter before shrinkage 1.2 mm
contains glue inside No
Length 300 m
Material PE, crosslinked
max. operating temperature 125 °C
min. operating temperature -55 °C
Shrinking rate 2:1
Shrinking temperature 100 °C
Wall thickness 0.3 mm
Show similar products 0
Logistics
Country of origin CN
Customs tariff number 39173200
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
