301-10010 | HellermannTyton

Heatshrink tubing, 4:1, (7.6/1.7 mm), PE, crosslinked, black, 301-10010

Order No.: 42P2702
EAN: 4031026482149
MPN:
301-10010
SA47-HT 7.6/1.7-PO-X-BK
Series: SA47-HT
HellermannTyton
301-10010 HellermannTyton Heat Shrink Tubing
Image may differ
Print
Key Specification:
Shrinking rate 4:1
Inner diameter before shrinkage 7.6 mm
Inner diameter after shrinkage 1.7 mm
Length 1.2 m
min. operating temperature -40 °C

Ordering Information:

Supplied as 1.2 m section
Download Datasheet Technical specifications
This item is no longer available.
As an alternative, we recommend the following item:

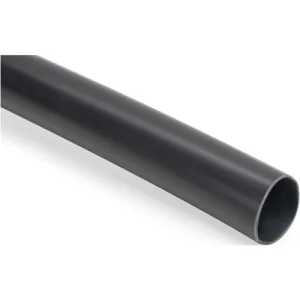

Heatshrink tubing, 4:1, (7.6/1.7 mm), PO, crosslinked, black, 317-00070
Heatshrink tubing, 4:1, (7.6/1.7 mm), PO, crosslinked, black, 317-00070
Order No.: 91F1400
Manufacturer: HellermannTyton
per pc. 7.1043 € *
*incl. VAT plus shipping costs
Description
Technical specifications
Download
Logistics
Compliance
Replacement
Technical specifications
Colour black
Inner diameter after shrinkage 1.7 mm
Inner diameter before shrinkage 7.6 mm
contains glue inside Yes
Length 1.2 m
Material PE, crosslinked
max. operating temperature 150 °C
min. operating temperature -40 °C
Shrinking rate 4:1
Shrinking temperature 130 °C
Wall thickness 1.52 mm
Show similar products 0
Logistics
Country of origin JP
Customs tariff number 39173200
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
Replacement
