302-31900 | HellermannTyton
Heatshrink tubing, 2:1, (19.1/9.5 mm), PE, crosslinked, black, 302-31900
Unit Price (€ / mtr.)
8.7822 € *
Available: 6 mtr.
Leadtime: 1 Week **
Total Price:
8.78 € *
Price list
Quantity
Price per unit*
1 mtr.
8.7822 €
10 mtr.
7.7707 €
50 mtr.
6.7592 €
100 mtr.
6.2475 €
500 mtr.
5.7477 €
*incl. VAT plus shipping costs
**Subject to prior sale
Heatshrink tubing, halogen-free, for low shrinking temperature, type HellermannTyton TL 27.
Thin-walled, short shrinking time, for the mechanical and electrical protection of temperature-sensitive components

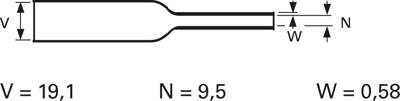

Technical specifications
| Colour | black | |
| Inner diameter after shrinkage | 9.5 mm | |
| Inner diameter before shrinkage | 19.1 mm | |
| contains glue inside | No | |
| Length | 150 m | |
| Material | PE, crosslinked | |
| max. operating temperature | 135 °C | |
| min. operating temperature | -55 °C | |
| Shrinking rate | 2:1 | |
| Shrinking temperature | 90 °C | |
| Wall thickness | 0.58 mm | |
| Inch Size | 3/4 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 39173200 |
| Original Packaging | Reel with 100 meters |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
