309-13814 | HellermannTyton

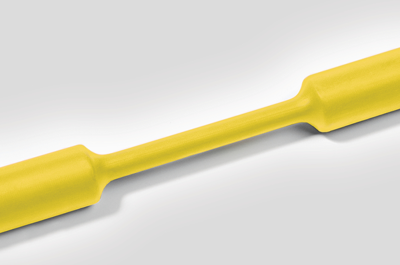

Heatshrink tubing, 2:1, (38.1/19.1 mm), PE, crosslinked, yellow, 309-13814
Unit Price (€ / mtr.)
16.3030 € *
Available: 0 mtr.
Leadtime: 14 Weeks **
- Thin-walled, flexible heat shrink tubing
- Extremely fast shrinking
- Flame retardant
- Very low shrinkage temperature
- Very good mechanical strength and strain relief
- Good chemical resistance
- Meets a wide range of industry standards
- Large selection of colours and sizes
The hose serves as electrical and mechanical protection and for colour coding. The transparent version TF24 is used if the shrink-wrapped component is to remain visible and as protection for marking solutions.
Technical specifications
| Colour | yellow | |
| Inner diameter after shrinkage | 19.1 mm | |
| Inner diameter before shrinkage | 38.1 mm | |
| contains glue inside | No | |
| Length | 60 m | |
| Material | PE, crosslinked | |
| max. operating temperature | 135 °C | |
| min. operating temperature | -55 °C | |
| Shrinking rate | 2:1 | |
| Shrinking temperature | 90 °C | |
| Wall thickness | 1.02 mm | |
| Inch Size | 1 1/2 |
Download
Logistics
| Country of origin | JP |
| Customs tariff number | 39173200 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
