317-00073 | HellermannTyton

Heatshrink tubing, 4:1, (17.8/4.4 mm), PO, crosslinked, black, 317-00073

Order No.: 91F1403
EAN: 4031026697673
MPN:
317-00073
TX46-17.8/4.4-PO-X-BK
Series: TX46
HellermannTyton

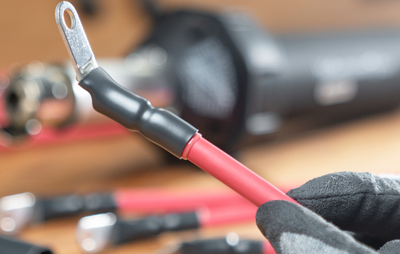

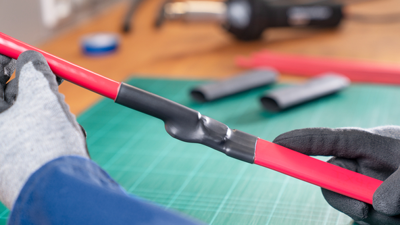

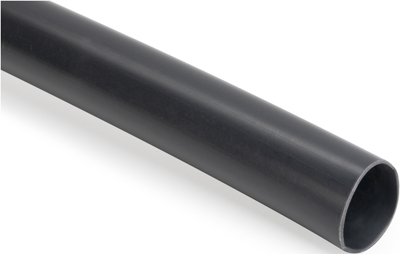

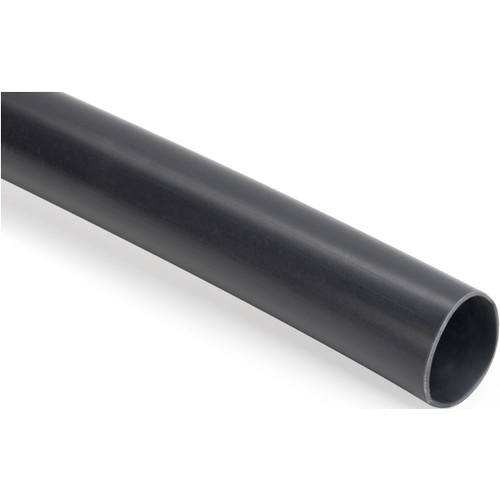

317-00073 HellermannTyton Heat Shrink Tubing Image 1

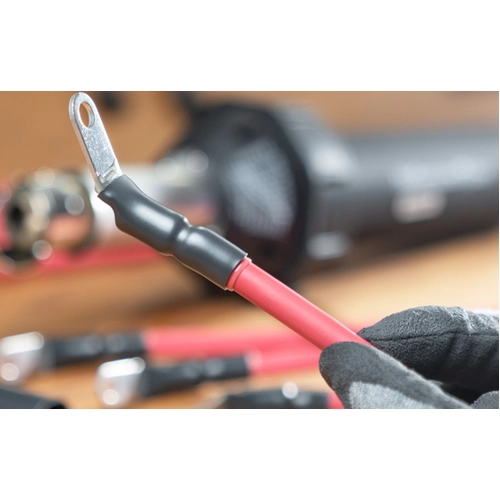

317-00073 HellermannTyton Heat Shrink Tubing Image 2

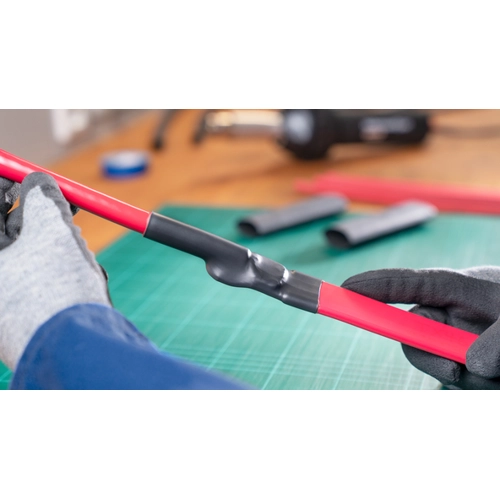

317-00073 HellermannTyton Heat Shrink Tubing Image 3
Image may differ
Unit Price (€ / pc.)
26.8821 € *
Available: 0 pcs.
Leadtime: 5 Weeks **
Total Price:
26.88 € *
*incl. VAT plus shipping costs
**Subject to prior sale
50 pcs.
26.8821 €

Heat shrink tubing, 317-00073, HellermannTyton

The 317-00073 heat shrink tubing is the perfect choice in sealing applications with an adhesive that withstands temperatures up to 150°C. Its aesthetic finish and resistance to automotive fluids make it the preferred choice for environments where high temperature sealing is critical, such as engine compartments.

Features

  • Thin-walled (time, cost and weight saving)
  • 4:1 shrink ratio (for challenging geometries, higher surface pressure)
  • Self-extinguishing
Technical specifications
Colour black
Inner diameter after shrinkage 4.4 mm
Inner diameter before shrinkage 17.8 mm
contains glue inside Yes
Length 1.2 m
Material PO, crosslinked
max. operating temperature 150 °C
min. operating temperature -40 °C
Shrinking rate 4:1
Shrinking temperature 135 °C
Wall thickness 0.7 mm
Logistics
Country of origin CN
Customs tariff number 39173200
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
