317-00075 | HellermannTyton

Heatshrink tubing, 4:1, (32/8 mm), PO, crosslinked, black, 317-00075

Order No.: 91F1405
EAN: 4031026730745
MPN:
317-00075
TX46-32.0/8.0-PO-X-BK
Series: TX46
HellermannTyton

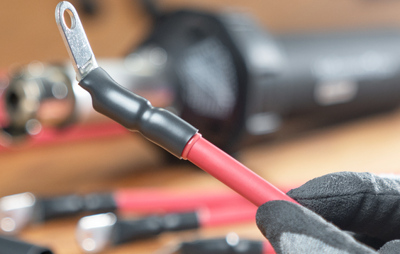

317-00075 HellermannTyton Heat Shrink Tubing Image 1

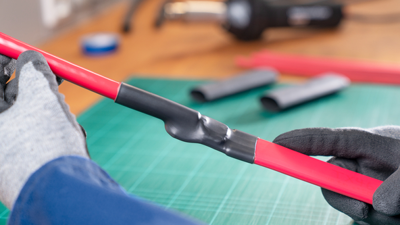

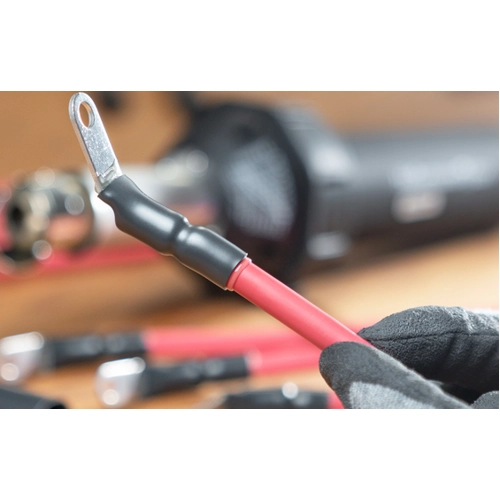

317-00075 HellermannTyton Heat Shrink Tubing Image 2

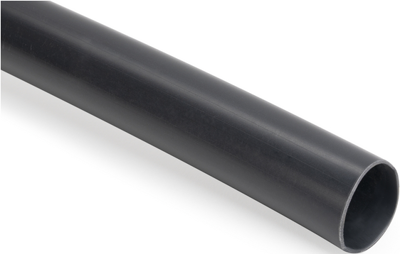

317-00075 HellermannTyton Heat Shrink Tubing Image 3
Image may differ
Unit Price (€ / pc.)
37.0804 € *
Available: 0 pcs.
Leadtime: 5 Weeks **
Total Price:
37.08 € *
*incl. VAT plus shipping costs
**Subject to prior sale
10 pcs.
37.0804 €

Heat shrink tubing, 317-00075, HellermannTyton

The 317-00075 heat shrink tubing is the perfect choice in sealing applications with an adhesive that withstands temperatures up to 150°C. Its aesthetic finish and resistance to automotive fluids make it the preferred choice for environments where high temperature sealing is critical, such as engine compartments.

Features

  • Thin-walled (time, cost and weight saving)
  • 4:1 shrink ratio (for challenging geometries, higher surface pressure)
  • Self-extinguishing
Technical specifications
Colour black
Inner diameter after shrinkage 8 mm
Inner diameter before shrinkage 32 mm
contains glue inside Yes
Length 1.2 m
Material PO, crosslinked
max. operating temperature 150 °C
min. operating temperature -40 °C
Shrinking rate 4:1
Shrinking temperature 135 °C
Wall thickness 1.6 mm
Logistics
Country of origin CN
Customs tariff number 39173200
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
