323-20120 | HellermannTyton
Heatshrink tubing, 4:1, (12/3 mm), PE, crosslinked, black, 323-20120
Unit Price (€ / pc.)
11.1741 € *
Available: 14 pcs.
Leadtime: 1 Week **
Total Price:
11.17 € *
Price list
Quantity
Price per unit*
1 pcs.
11.1741 €
5 pcs.
10.1864 €
10 pcs.
9.4248 €
25 pcs.
8.8298 €
50 pcs.
8.3419 €
*incl. VAT plus shipping costs
**Subject to prior sale

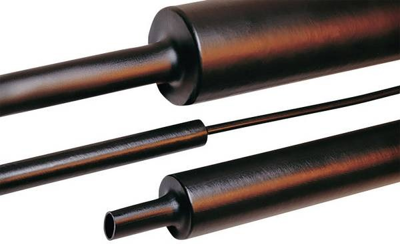

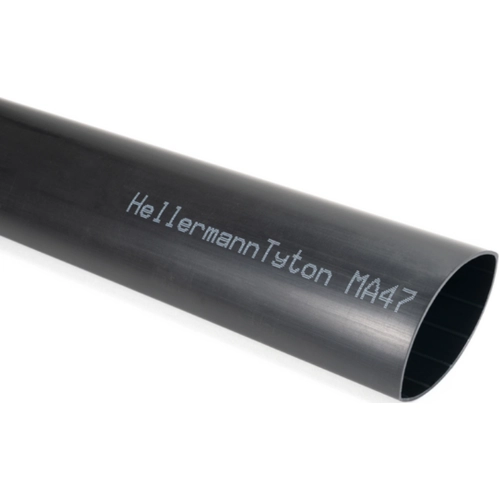

Heat shrinkable tubing, 323-20120, HellermannTyton
This product Is a heat shrinkable tubing with insulation and protection of low voltage cable joints and terminations above and below ground.
Features
- Medium wall tubing with robust insulation characteristics

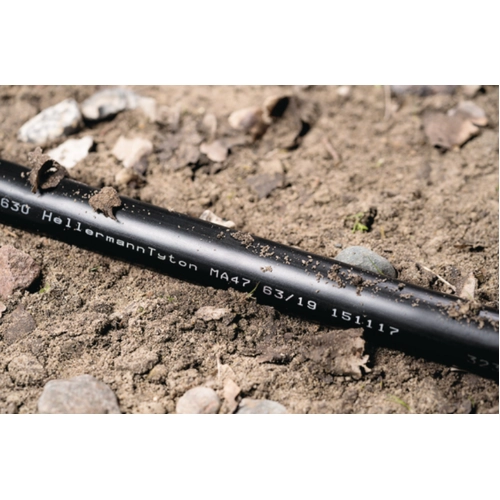

- Shrink tubing for above and underground cable applications
- Protects cable joints and terminations in low voltage applications
- Coated inside with thermoplastic adhesive
- Protects against humidity and other environmental impacts after shrinking
Technical specifications
Farbe | schwarz | |
Innendurchmesser nach Schrumpfung | 3 mm | |
Innendurchmesser vor Schrumpfung | 12 mm | |
Innenkleber vorhanden | Yes | |
Länge | 1 m | |
Material | PE, vernetzt | |
max. Temperatur | 110 °C | |
min. Temperatur | -55 °C | |
Schrumpfrate | 4:1 | |
Schrumpftemperatur | 120 °C | |
Wanddicke | 2 mm | |
Zollgröße | 1/2 |
Download
Logistics
Ursprungsland | CN |
Zolltarifnummer | 39173200 |
Compliance
RoHS konform | Yes |
Stand der RoHS-Richtlinie | 3/31/15 |
SVHC frei | Yes |
