336-00109 | HellermannTyton

Heatshrink tubing, 2:1, (1.17/0.56 mm), PTFE, transparent, 336-00109

Order No.: 42P5917
EAN: 4031026149295
MPN:
336-00109
TFE2-26-PTFE-CL
Series: TFE2

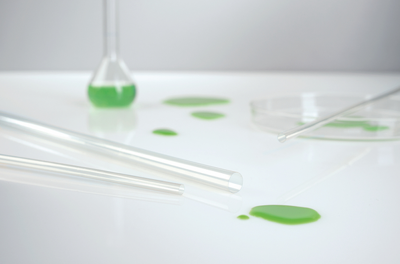

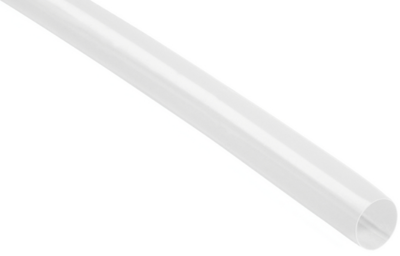

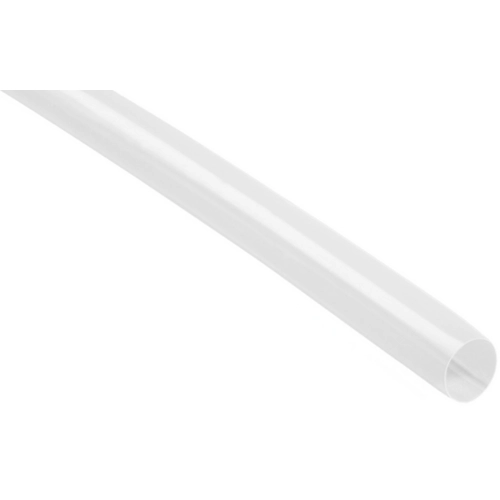

336-00109 HellermannTyton Heat Shrink Tubing Image 1

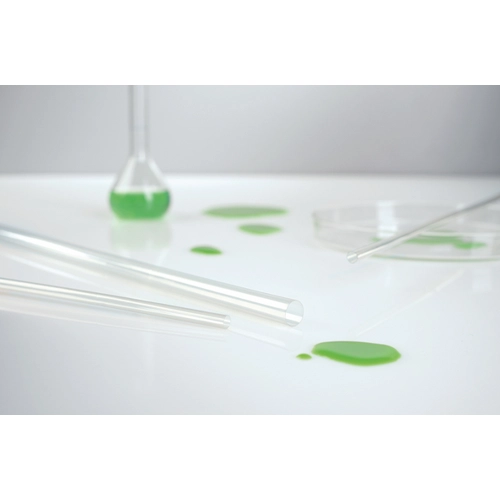

336-00109 HellermannTyton Heat Shrink Tubing Image 2
Image may differ
Unit Price (€ / pc.)
12.2570 € *
Available: 0 pcs.
Leadtime: 8 Weeks **
Total Price:
12.26 € *
Price list
Quantity
Price per unit*
1 pcs.
12.2570 €
10 pcs.
11.3407 €
25 pcs.
10.4244 €
50 pcs.
9.8056 €
100 pcs.
9.1987 €
*incl. VAT plus shipping costs
**Subject to prior sale

Heat shrinkable tubing, 336-00109, HellermannTyton

The 336-00109 is ideal for high temperature applications, when resistance to aggressive fluids is required or a very thin walled tubing is needed, for example in pH-measuring instruments. TFE tubing is also used to reduce movement due to friction, covering cylinders for example.

Features

  • Very high temperature resistance
  • Extra thin wall translucent tubing
  • High abrasion resistance and good resistance against aggressive chemicals
Technical specifications
Farbe transparent
Innendurchmesser nach Schrumpfung 0.56 mm
Innendurchmesser vor Schrumpfung 1.17 mm
Innenkleber vorhanden No
Länge 1.2 m
Material PTFE
max. Temperatur 260 °C
min. Temperatur -65 °C
Schrumpfrate 2:1
Schrumpftemperatur 330 °C
Wanddicke 0.23 mm
Logistics
Ursprungsland DE
Zolltarifnummer 39173200
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
