336-00489 | HellermannTyton

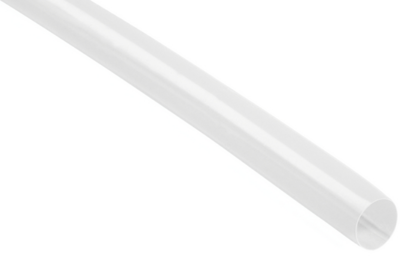

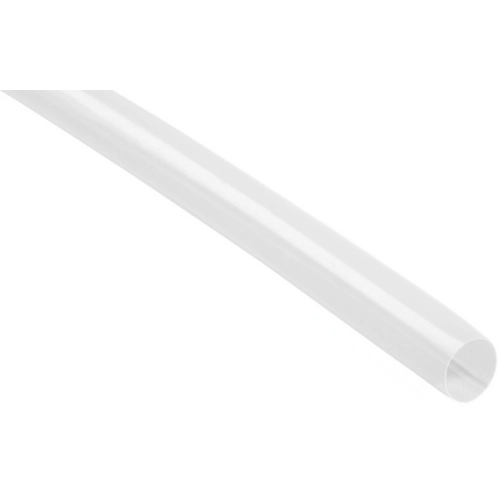

Heatshrink tubing, 2:1, (4.85/2.85 mm), PTFE, transparent, 336-00489
Unit Price (€ / pc.)
12.9472 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
647.36 € *
Price list
Quantity
Price per unit*
50 pcs.
12.9472 €
100 pcs.
12.1380 €
*incl. VAT plus shipping costs
**Subject to prior sale
Heat shrinkable tubing, 336-00489, HellermannTyton
The 336-00489 is ideal for high temperature applications, when resistance to aggressive fluids is required or a very thin walled tubing is needed, for example in pH-measuring instruments. TFE tubing is also used to reduce movement due to friction, covering cylinders for example.
Features
- Very high temperature resistance
- Extra thin wall translucent tubing
- High abrasion resistance and good resistance against aggressive chemicals
Technical specifications
| Farbe | transparent | |
| Innendurchmesser nach Schrumpfung | 2.85 mm | |
| Innendurchmesser vor Schrumpfung | 4.85 mm | |
| Innenkleber vorhanden | No | |
| Länge | 1.2 m | |
| Material | PTFE | |
| max. Temperatur | 260 °C | |
| min. Temperatur | -65 °C | |
| Schrumpfrate | 2:1 | |
| Schrumpftemperatur | 330 °C | |
| Wanddicke | 0.3 mm |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 39173200 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
