336-00949 | HellermannTyton

Heatshrink tubing, 2:1, (9.4/5.69 mm), PTFE, transparent, 336-00949

Order No.: 42P5928
EAN: 4031026149516
MPN:
336-00949
TFE2-4-PTFE-CL
Series: TFE2

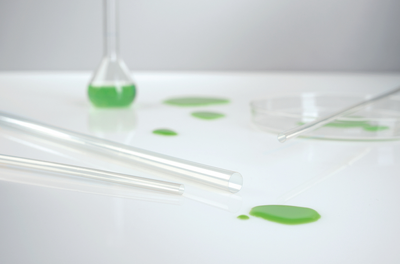

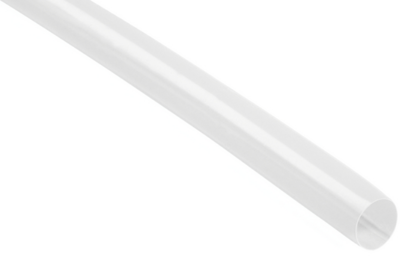

336-00949 HellermannTyton Heat Shrink Tubing Image 1
336-00949 HellermannTyton Heat Shrink Tubing Image 2
Image may differ
Unit Price (€ / pc.)
17.493 € *
Available: 0 pcs.
Leadtime: 8 Weeks **
Total Price:
1,749.30 € *
*incl. VAT plus shipping costs
**Subject to prior sale
100 pcs.
17.493 €

Heat shrinkable tubing, 336-00949, HellermannTyton

The 336-00949 is ideal for high temperature applications, when resistance to aggressive fluids is required or a very thin walled tubing is needed, for example in pH-measuring instruments. TFE tubing is also used to reduce movement due to friction, covering cylinders for example.

Features

  • Very high temperature resistance
  • Extra thin wall translucent tubing
  • High abrasion resistance and good resistance against aggressive chemicals
Technical specifications
Farbe transparent
Innendurchmesser nach Schrumpfung 5.69 mm
Innendurchmesser vor Schrumpfung 9.4 mm
Innenkleber vorhanden No
Länge 1.2 m
Material PTFE
max. Temperatur 260 °C
min. Temperatur -65 °C
Schrumpfrate 2:1
Schrumpftemperatur 330 °C
Wanddicke 0.38 mm
Logistics
Ursprungsland DE
Zolltarifnummer 39173200
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
