336-01209 | HellermannTyton

Heatshrink tubing, 2:1, (11.94/8.81 mm), PTFE, transparent, 336-01209

Order No.: 42P5930
EAN: 4031026149554
MPN:
336-01209
TFE2-0-PTFE-CL
Series: TFE2

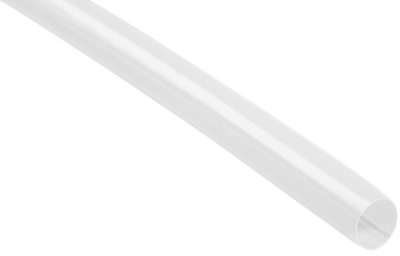

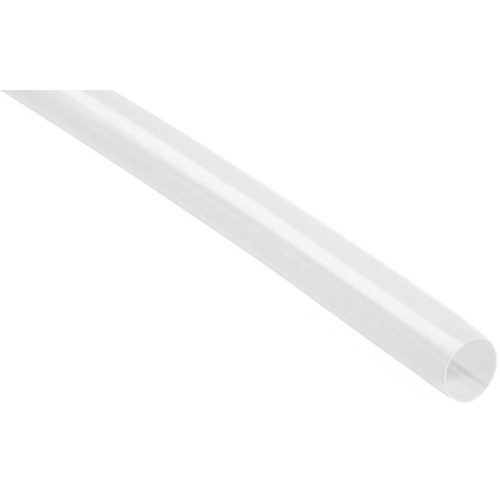

336-01209 HellermannTyton Heat Shrink Tubing Image 1
336-01209 HellermannTyton Heat Shrink Tubing Image 2
Image may differ
Unit Price (€ / pc.)
34.272 € *
Available: 0 pcs.
Leadtime: 8 Weeks **
Total Price:
3,427.20 € *
*incl. VAT plus shipping costs
**Subject to prior sale
100 pcs.
34.272 €

Heat shrinkable tubing, 336-01209, HellermannTyton

The 336-01209 is ideal for high temperature applications, when resistance to aggressive fluids is required or a very thin walled tubing is needed, for example in pH-measuring instruments. TFE tubing is also used to reduce movement due to friction, covering cylinders for example.

Features

  • Very high temperature resistance
  • Extra thin wall translucent tubing
  • High abrasion resistance and good resistance against aggressive chemicals
Technical specifications
Farbe transparent
Innendurchmesser nach Schrumpfung 8.81 mm
Innendurchmesser vor Schrumpfung 11.94 mm
Innenkleber vorhanden No
Länge 1.2 m
Material PTFE
max. Temperatur 260 °C
min. Temperatur -65 °C
Schrumpfrate 2:1
Schrumpftemperatur 330 °C
Wanddicke 0.38 mm
Logistics
Ursprungsland DE
Zolltarifnummer 39173200
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
