166-21005 | HellermannTyton

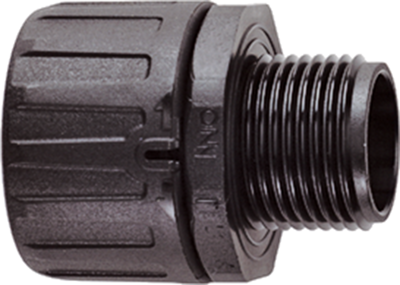

Straight hose screw fitting, M32, 28 mm, PA, IP66, black, (L) 49 mm, 166-21005
Unit Price (€ / pc.)
4.4387 € *
Available: 8 pcs.
Leadtime: 1 Week **
Total Price:
4.44 € *
Price list
Quantity
Price per unit*
1 pcs.
4.4387 €
10 pcs.
4.0698 €
50 pcs.
3.8199 €
100 pcs.
3.5700 €
1000 pcs.
3.4748 €
*incl. VAT plus shipping costs
**Subject to prior sale
Plastic conduit fittings series HelaGuard, type HellermannTyton HG..S.
Quick-lock fitting in one piece, good resistance against solvents and oils; Material: polyamide 6.6 (PA66). Degree of protection: IP 66. Color: black. Operating temperatures: –50 to +135 °C. Fire protection properties: to UL 94 V-2.
With metric thread, type HG..S-M.
Technical attributes (type, conduit diameter, thread): HG28–S–M25, 28 mm, M 25
Technical specifications
| Farbe | schwarz | |
| Gewindegröße | M32 | |
| Länge | 49 mm | |
| Material | PA | |
| max. Temperatur | 135 °C | |
| min. Temperatur | -50 °C | |
| Nennweite | 28 mm | |
| Schutzart (IP) | IP66 |
Download
Logistics
| Ursprungsland | GB |
| Zolltarifnummer | 39174000 |
| Originalverpackung | Beutel mit 10 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
