166-11203 | HellermannTyton

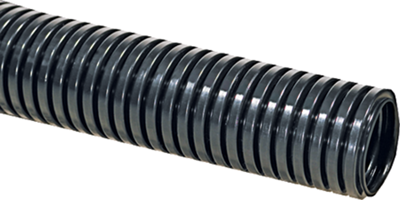

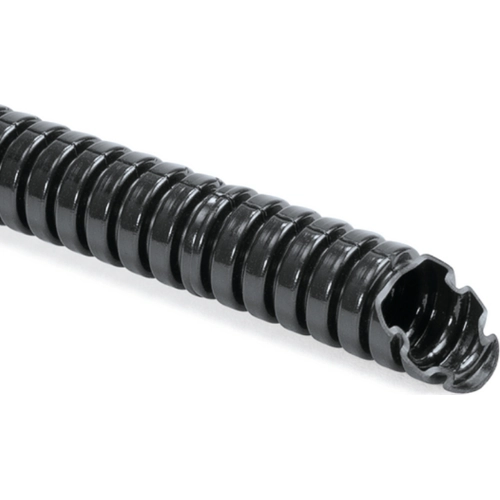

Corrugated hose, inside Ø 12 mm, outside Ø 15.8 mm, BR 35 mm, PA, black, 166-11203
Unit Price (€ / mtr.)
1.7731 € *
Available: 8 mtr.
Leadtime: 1 Week **
Total Price:
1.77 € *
Price list
Quantity
Price per unit*
1 mtr.
1.7731 €
10 mtr.
1.6422 €
50 mtr.
1.4637 €
100 mtr.
1.3328 €
500 mtr.
1.2495 €
*incl. VAT plus shipping costs
**Subject to prior sale
Plastic conduit series HelaGuard, type HellermannTyton HG-LW.
Ultra-flexible, long useful life and small bending radius, high impact resistance and resistance to deformation, free of halogen, sulfur and phosphor, resistant against solvents and oils; Material: polyamide 6 (PA6). Operating temperatures static/moving: –40 to +120 °C/–20 to +100 °C. Fire protection properties: self-extinguishing to EN 61386.
Technical attributes (type, outer diameter (OD), inner diameter (ID), bending radius (B), weight (g/m)): HG–LW16, OD 15.8, ID 11.8, B 35 mm, 36 g/m
Technical specifications
| Inner diameter | 12 mm | |
| Outer diameter | 15.8 mm | |
| Nominal width | 12 mm | |
| Bending radius | 35 mm | |
| Material | PA | |
| Colour | schwarz | |
| Degree of protection (IP) | IP66 | |
| Flame-retardant | No | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 120 °C |
Download
Logistics
| Country of origin | GB |
| Customs tariff number | 39173200 |
| Original Packaging | Rolle mit 50 Meter |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
