166-11209 | HellermannTyton

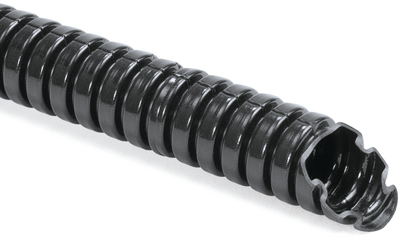

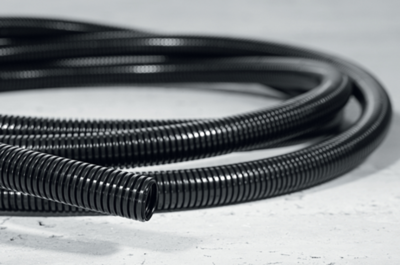

Corrugated hose, inside Ø 56.5 mm, outside Ø 67.2 mm, BR 110 mm, PA, black, 166-11209
Unit Price (€ / mtr.)
23.8952 € *
Available: 0 mtr.
Leadtime: 1 Week **
Total Price:
23.90 € *
Price list
Quantity
Price per unit*
1 mtr.
23.8952 €
10 mtr.
22.0983 €
50 mtr.
19.7064 €
100 mtr.
17.9214 €
500 mtr.
16.7314 €
*incl. VAT plus shipping costs
**Subject to prior sale
PA conduit, 166-11209, HELLERMANN TYTON
Polyamide protective hose, abrasion resistance.
FEATURES
- Abrasion resistance
- Resistant to solutions and oils
- Free of halogen, sulfur and phosphorus
- Good impact and shape resistance
Technical details
- Min. Temperature: -40°C
- Max. Temperature: 120°C
- Material: Polyamide
- Color: black
Technical specifications
| Außendurchmesser | 67.2 mm | |
| Biegeradius | 110 mm | |
| Farbe | schwarz | |
| Flammwidrig | Yes | |
| Innendurchmesser | 56.5 mm | |
| Material | PA | |
| max. Temperatur | 120 °C | |
| min. Temperatur | -40 °C | |
| Nennweite | 56 mm | |
| Schutzart (IP) | IP66 |
Download
Logistics
| Ursprungsland | GB |
| Zolltarifnummer | 39173200 |
| Originalverpackung | Rolle mit 10 Meter |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
