166-11404 | HellermannTyton

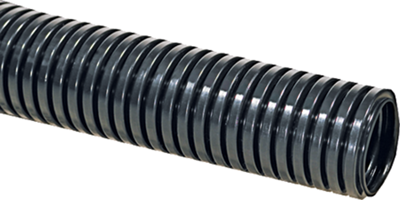

Corrugated hose, inside Ø 21.7 mm, outside Ø 28.5 mm, BR 50 mm, PA, black, 166-11404
Order No.: 91F4554
EAN: 4031026302607
MPN:
166-11404
HG-FR28-PA6-BK-50M
Series: HelaGuard PA6 Flammhemmend
Unit Price (€ / mtr.)
8.2943 € *
Available: 0 mtr.
Leadtime: 1 Week **
Total Price:
8.29 € *
Price list
Quantity
Price per unit*
1 mtr.
8.2943 €
25 mtr.
7.4613 €
50 mtr.
6.8425 €
100 mtr.
6.2237 €
500 mtr.
5.6049 €
*incl. VAT plus shipping costs
**Subject to prior sale
Plastic conduit, flame retardant series HelaGuard, type HellermannTyton HG-FR.
Ultra-flexible, long useful life. High resistance against deformation, impact- and abrasion-proof, free of halogen, sulfur and phosphor, resistant against solvents and oil and UV radiation; Material: polyamide 6 V0, flame retardant. Operating temperatures static/moving: –40 to +120 °C/–20 to +110 °C. Fire protection properties: to UL 94 V-0.
Technical attributes (type, outer diameter (OD), inner diameter (ID), bending radius (B), weight (g/m)): HG-FR28, OD 28.5, ID 21.7, B 50 mm, 100 g/m
Technical specifications
| Inner diameter | 21.7 mm | |
| Outer diameter | 28.5 mm | |
| Nominal width | 23 mm | |
| Bending radius | 50 mm | |
| Material | PA | |
| Colour | schwarz | |
| Degree of protection (IP) | IP66 | |
| Flame-retardant | Yes | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 120 °C |
Download
Logistics
| Country of origin | GB |
| Customs tariff number | 39173200 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
