166-30202 | HellermannTyton

Protective hose, inside Ø 13 mm, outside Ø 16.4 mm, BR 40 mm, stainless steel, metal, 166-30202

Order No.: 42P5814
EAN: 4031026305974
MPN:
166-30202
SSC16-SS316-ML
Series: SSC
HellermannTyton
166-30202 HellermannTyton Protective Tubes

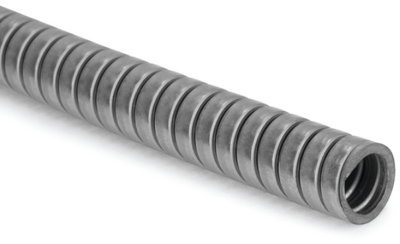

Image may differ
Unit Price (€ / mtr.)
13.4351 € *
Available: 0 mtr.
Leadtime: 1 Week **
Total Price:
13.44 € *
*incl. VAT plus shipping costs
**Subject to prior sale
25 mtr.
13.4351 €

Stainless steel conduit, 166-30202, HellermannTyton

The 166-30202 is a stainless steel, corrosion-resistant flexible conduit used for protection of sensor cables, instrumentation tubing, as well as hydraulic and pneumatic hoses, particularly in corrosive environments. Commonly used in hospitals and clinics.

Features

  • Highly resistant to rust and corrosion
  • High compression, tensile and impact strength
  • Very flexible
Technical specifications
Outer diameter 16.4 mm
Bending radius 40 mm
Colour metal
Inner diameter 13 mm
Material stainless steel
max. operating temperature 600 °C
min. operating temperature -100 °C
Degree of protection (IP) IP40
Logistics
Country of origin GB
Customs tariff number 83071000
Original Packaging Reel with 25 meters
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
