166-30700 | HellermannTyton

Spiral protective hose, inside Ø 6.8 mm, outside Ø 10.1 mm, BR 25 mm, GS/PVC, black, 166-30700

Order No.: 91F4560
EAN: 4031026306711
MPN:
166-30700
PCS10-GS/PVC-BK-50M
Series: HelaGuard PCS
166-30700 HellermannTyton Protective Tubes
Image may differ
Unit Price (€ / mtr.)
4.9980 € *
Available: 0 mtr.
Leadtime: 7 Weeks **
Total Price:
5.00 € *
Price list
Quantity
Price per unit*
1 mtr.
4.9980 €
10 mtr.
4.4982 €
50 mtr.
4.2483 €
100 mtr.
3.8794 €
*incl. VAT plus shipping costs
**Subject to prior sale

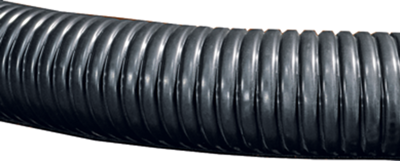

Steel conduit with PVC sheath, series HelaGuard, type HellermannTyton PCS.

Ultra-flexible, high tensile strength and pressure resistance, liquid-proof, good resistance against chemicals (caustic solutions, acids etc.); Material: galvanized steel (GS), polyvinylene chloride (PVC). Operating temperatures: –15 to +70 °C.

Technical attributes (type, outer diameter (OD), inner diameter (ID), bending radius (B), weight (g/m)): PCS10, OD 10, ID 6.8, B 25 mm, 140 g/m

Technical specifications
Inner diameter 6.8 mm
Outer diameter 10.1 mm
Nominal width 10 mm
Bending radius 25 mm
Material GS/PVC
Colour schwarz
Degree of protection (IP) IP66
Flame-retardant No
min. operating temperature -15 °C
max. operating temperature 70 °C
Logistics
Country of origin GB
Customs tariff number 83071000
Original Packaging Rolle mit 50 Meter
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
