166-30705 | HellermannTyton
Spiral protective hose, inside Ø 28.1 mm, outside Ø 34 mm, BR 70 mm, GS/PVC, black, 166-30705
Unit Price (€ / mtr.)
17.5406 € *
Available: 6 mtr.
Leadtime: 1 Week **
Total Price:
17.54 € *
Price list
Quantity
Price per unit*
1 mtr.
17.5406 €
25 mtr.
15.7913 €
50 mtr.
14.9107 €
100 mtr.
13.5898 €
*incl. VAT plus shipping costs
**Subject to prior sale

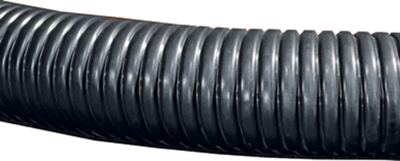

Steel conduit with PVC sheath, series HelaGuard, type HellermannTyton PCS.
Ultra-flexible, high tensile strength and pressure resistance, liquid-proof, good resistance against chemicals (caustic solutions, acids etc.); Material: galvanized steel (GS), polyvinylene chloride (PVC). Operating temperatures: –15 to +70 °C.
Technical attributes (type, outer diameter (OD), inner diameter (ID), bending radius (B), weight (g/m)): PCS32, OD 34, ID 28.1, B 70 mm, 560 g/m
Technical specifications
| Outer diameter | 34 mm | |
| Bending radius | 70 mm | |
| Colour | black | |
| Flame-retardant | No | |
| Inner diameter | 28.1 mm | |
| Material | GS/PVC | |
| max. operating temperature | 70 °C | |
| min. operating temperature | -15 °C | |
| Nominal width | 32 mm | |
| Degree of protection (IP) | IP66 |
Download
Logistics
| Country of origin | GB |
| Customs tariff number | 83071000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
