167-00211 | HellermannTyton
Spiral protective hose, inside Ø 13 mm, outside Ø 17 mm, BR 17 mm, PVC, gray, 167-00211
Unit Price (€ / mtr.)
10.6029 € *
Available: 18 mtr.
Leadtime: 1 Week **
Total Price:
10.60 € *
Price list
Quantity
Price per unit*
1 mtr.
10.6029 €
10 mtr.
9.9722 €
50 mtr.
9.3534 €
100 mtr.
8.7346 €
*incl. VAT plus shipping costs
**Subject to prior sale

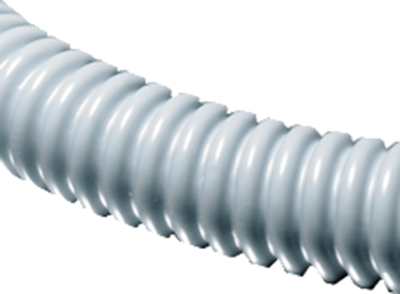

Corrugated conduit, type HellermannTyton FlexiGuard FG.
Ultra-flexible, with inner plastic-coated steel helix, small bending radius (corresponds to outer diameter); Material: soft PVC, cadmium-free. Color: gray. Operating temperatures: –20 to +70 °C, briefly +80 °C. Fire protection properties to UL 94 HB.
Technical attributes (type, outer diameter (OD), inner diameter (ID)): FG17, OD 17, ID 13 mm
Technical specifications
| Außendurchmesser | 17 mm | |
| Biegeradius | 17 mm | |
| Farbe | grau | |
| Flammwidrig | No | |
| Innendurchmesser | 13 mm | |
| Material | PVC | |
| max. Temperatur | 70 °C | |
| min. Temperatur | -20 °C | |
| Nennweite | 17 mm | |
| Schutzart (IP) | IP68 |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 39173900 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
