90310 | HELUKABEL
Cable gland, PG7, 14 mm, Clamping range 3 to 6.5 mm, IP68/IP69K, metal, 90310
Unit Price (€ / pc.)
5.7239 € *
Available: 0 pcs.
Leadtime: On Request **

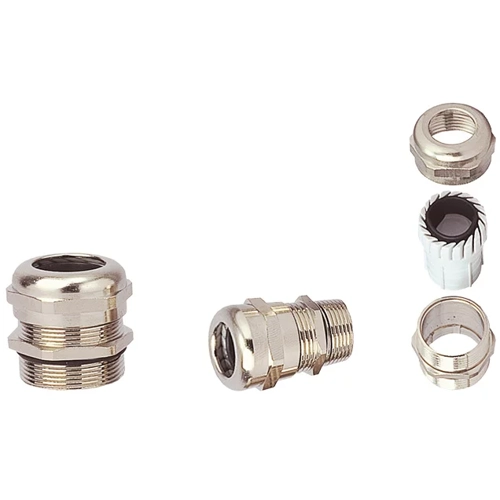

Cable gland, 90310, HELUKABEL
Nickel plated brass cable gland with long threaded connection.
Features
- Optimum strain relief through clamping lamella
- Easy to assemble, time and cost savings
- Large clamping areas
Applications
- Machine and plant construction
- Automation technology
- Vehicle construction and shipbuilding
- Railway technology
- Installation technology
- Control cabinet construction
Technical specifications
| Version | cable gland | |
| Colour | metal | |
| Thread size | PG7 | |
| Material | brass, nickel-plated | |
| max. clamping range | 6.5 mm | |
| max. operating temperature | 100 °C | |
| min. clamping range | 3 mm | |
| min. operating temperature | -40 °C | |
| spanner size | 14 mm | |
| Degree of protection (IP) | IP68/IP69K |
Download
Logistics
| Customs tariff number | 85389099 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
