90327 | HELUKABEL

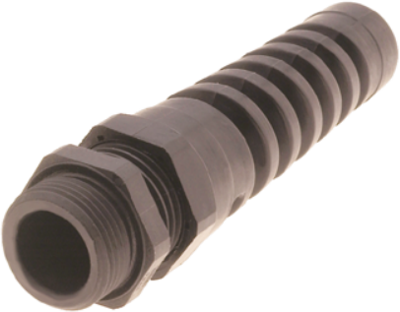

Cable gland, PG9, 19 mm, Clamping range 4 to 8 mm, IP68/IP69K, black, 90327
Unit Price (€ / pc.)
1.3209 € *
Available: 0 pcs.
Leadtime: On Request **
Cable gland, 90327, HELUKABEL
PA cable gland, Temperature range -40°C to +100°C, Protection class IP 68 - 10 bar / IP 69K - within the specific clamping range with additional o-ring.
Features
- Halogen-free
- Phosphor-free
- Silicone-free
- Optimum strain relief through clamping lamella
- Easy to assemble, time and cost savings
- Large clamping areas
Applications
- Machine and plant construction
- Automation technology
- Vehicle construction and shipbuilding
- Railway technology
- Installation technology
- Control cabinet construction
Technical specifications
| Ausführung | Kabelverschraubung | |
| Farbe | schwarz | |
| Gewindegröße | PG9 | |
| Material | PA | |
| max. Klemmbereich | 8 mm | |
| max. Temperatur | 10 °C | |
| min. Klemmbereich | 4 mm | |
| min. Temperatur | -40 °C | |
| Schlüsselweite | 19 mm | |
| Schutzart (IP) | IP68/IP69K |
Download
Logistics
| Zolltarifnummer | 39269097 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
