90375 | HELUKABEL
Sealing cable gland, PG29, 40 mm, Clamping range 17 to 21 mm, IP68, brown, 90375
Unit Price (€ / pc.)
9.3177 € *
Available: 0 pcs.
Leadtime: On Request **

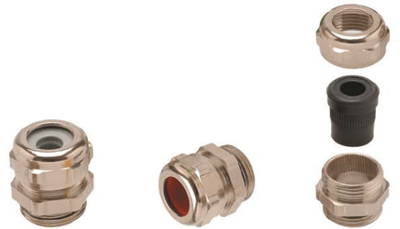

Sealing gland, 90375, HELUKABEL
Nickel plated brass sealing gland with colour-coded Soft PVC inserts.
Features
- Easy to assemble, time and cost savings
- Large-area sealing
Applications
- Machine and plant construction
- Automation technology
- Vehicle construction and shipbuilding
- Railway technology
- Installation technology
- Control cabinet construction
Technical specifications
| Version | sealing cable gland | |
| Colour | brown | |
| Thread size | PG29 | |
| Material | brass, nickel-plated | |
| max. clamping range | 21 mm | |
| max. operating temperature | 105 °C | |
| min. clamping range | 17 mm | |
| min. operating temperature | -20 °C | |
| spanner size | 40 mm | |
| Degree of protection (IP) | IP68 |
Download
Logistics
| Customs tariff number | 74122000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
