904120 | HELUKABEL

Sealing cable gland, PG48, 64 mm, Clamping range 39 to 44 mm, IP68, metal, 904120

Order No.: 93F9220
EAN: 4060892355257
MPN:
904120
Series: UNI-DICHT-MS
HELUKABEL
904120 HELUKABEL Cable Glands
Image may differ
Unit Price (€ / pc.)
63.0819 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
63.08 € *
*incl. VAT plus shipping costs
**Subject to prior sale
5 pcs.
63.0819 €

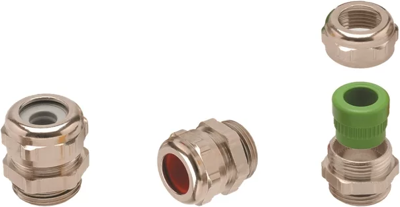

Sealing gland, 904120, HELUKABEL

Nickel plated brass sealing gland with optimum strain relief through rubber seal. This product is easy to assemble, time and cost savings.

Features

  • Large-area sealing
  • Large clamping areas

Applications

  • Machine and plant construction
  • Robotics
  • Automation technology
  • Vehicle construction and shipbuilding
  • Railway technology
  • Installation technology
  • Control cabinet construction
Technical specifications
Version sealing cable gland
Colour metal
Thread size PG48
Material brass, nickel-plated
max. clamping range 44 mm
max. operating temperature 130 °C
min. clamping range 39 mm
min. operating temperature -40 °C
spanner size 64 mm
Degree of protection (IP) IP68
Logistics
Customs tariff number 74122000
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
