905084 | HELUKABEL
Cable gland, M16, 20 mm, Clamping range 5 to 10 mm, IP68/IP69K, 905084
Unit Price (€ / pc.)
17.1122 € *
Available: 0 pcs.
Leadtime: On Request **

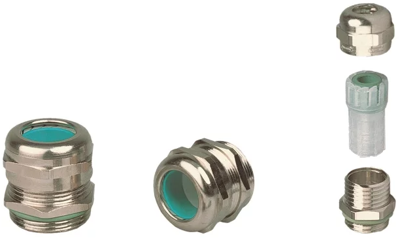

Cable gland, 905084, HELUKABEL
The 905084 is a cable gland that meets stringent requirements in technology. Polyvinylidene fluoride for use in the chemical industry, at high temperatures, under long-term UV exposure.
Features
- Optimum strain relief through clamping lamella
- Easy to assemble, time and cost savings
- Watertight, dust-tight
- Large temperature range
Technical specifications
| Version | cable gland | |
| Thread size | M16 | |
| Material | brass, nickel-plated | |
| max. clamping range | 10 mm | |
| max. operating temperature | 150 °C | |
| min. clamping range | 5 mm | |
| min. operating temperature | -35 °C | |
| spanner size | 20 mm | |
| Degree of protection (IP) | IP68/IP69K |
Download
Logistics
| Customs tariff number | 85389099 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
