90569 | HELUKABEL
Cable gland, PG7, 14 mm, Clamping range 5 to 6 mm, IP54, 90569
Unit Price (€ / pc.)
3.9984 € *
Available: 0 pcs.
Leadtime: On Request **
Cable gland, 90569, HELUKABEL

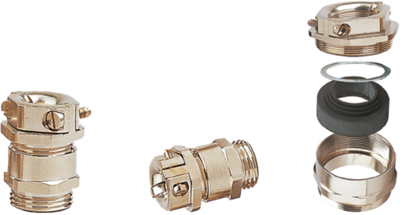

Nickel plated hexagonal brass strain relief gland, Temperature range -20°C to +60°C, Protection class IP 54.
Features
- Optimum strain relief through clamping lamella
Applications
- Machine and plant construction
- Automation technology
- Vehicle construction and shipbuilding
- Railway technology
- Installation technology
- Control cabinet construction
Technical specifications
| Version | cable gland | |
| Thread size | PG7 | |
| Material | brass, nickel-plated | |
| max. clamping range | 6 mm | |
| max. operating temperature | 60 °C | |
| min. clamping range | 5 mm | |
| min. operating temperature | -20 °C | |
| spanner size | 14 mm | |
| Degree of protection (IP) | IP54 |
Download
Logistics
| Customs tariff number | 85389099 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
