906966 | HELUKABEL
Cable gland, Ex, M16, 25/29 mm, Clamping range 8.5 to 16 mm, IP66/IP68, metal, 906966
Unit Price (€ / pc.)
7.9849 € *
Available: 0 pcs.
Leadtime: 6 Weeks **

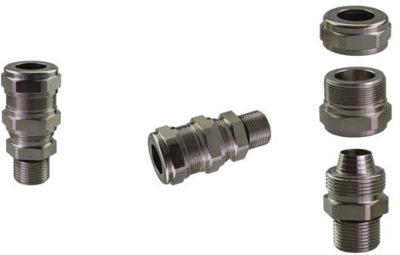

Cable gland, 906966, HELUKABEL
Nickel plated brass EX cable gland, Temperature range -40°C to +100°C, Protection class IP 66 / IP 68.
Features
- Optimum strain relief through clamping lamella
- Easy to assemble, time and cost savings
- Large clamping areas
- Explosive protection
Technical specifications
| Version | Ex | |
| Colour | metall | |
| Thread size | M16 | |
| Material | Messing, vernickelt | |
| max. clamping range | 16 mm | |
| max. operating temperature | 100 °C | |
| min. clamping range | 8.5 mm | |
| min. operating temperature | -40 °C | |
| Product type | Kabelverschraubung | |
| spanner size | 25/29 mm | |
| Degree of protection (IP) | IP66/IP68 |
Download
Logistics
| Customs tariff number | 74122000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
