906967 | HELUKABEL

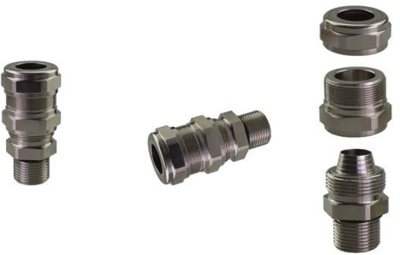

Ex Cable gland, M20, 24/26 mm, Clamping range 6 to 12 mm, IP66/IP68, metal, 906967

Order No.: 93F8773
EAN: 4060892350207
MPN:
906967
HELUKABEL
906967 HELUKABEL Cable Glands
Image may differ
Unit Price (€ / pc.)
7.9849 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
7.98 € *
*incl. VAT plus shipping costs
**Subject to prior sale
35 pcs.
7.9849 €

Cable gland, 906967, HELUKABEL

Nickel plated brass EX cable gland, Temperature range -40°C to +100°C, Protection class IP 66 / IP 68.

Features

  • Optimum strain relief through clamping lamella
  • Easy to assemble, time and cost savings
  • Large clamping areas
  • Explosive protection
Technical specifications
Version cable gland
Colour metal
Thread size M20
Material brass, nickel-plated
max. clamping range 12 mm
max. operating temperature 100 °C
min. clamping range 6 mm
min. operating temperature -40 °C
spanner size 24/26 mm
Degree of protection (IP) IP66/IP68
Logistics
Customs tariff number 74122000
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
