906993 | HELUKABEL
Cable gland, M12, 17 mm, Clamping range 4 to 7 mm, IP66/IP67, metal, 906993
Unit Price (€ / pc.)
21.777 € *
Available: 0 pcs.
Leadtime: On Request **
Cable gland, 906993, HELUKABEL

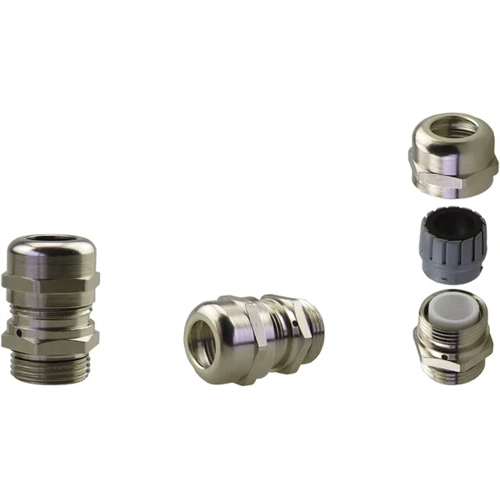

The 906993 is a nickel plated brass cable gland with integrated pressure compensation and ventilation system. This product has protection against ingress of water and foreign material into enclosure. Membrane allows that air humidity can leave the enclosure even at low pressure differences.
Features
- Phosphor-free
- Silicone-free
- Optimum strain relief through clamping lamella
- Easy to assemble, time and cost savings
- Large clamping areas
Applications
- High sealing enclosures
- Environments with extensive temperature ranges
- Prevents water condensation
Technical specifications
| Version | cable gland | |
| Colour | metal | |
| Thread size | M12 | |
| Material | brass, nickel-plated | |
| max. clamping range | 7 mm | |
| max. operating temperature | 100 °C | |
| min. clamping range | 4 mm | |
| min. operating temperature | -20 °C | |
| spanner size | 17 mm | |
| Degree of protection (IP) | IP66/IP67 |
Download
Logistics
| Customs tariff number | 74122000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
